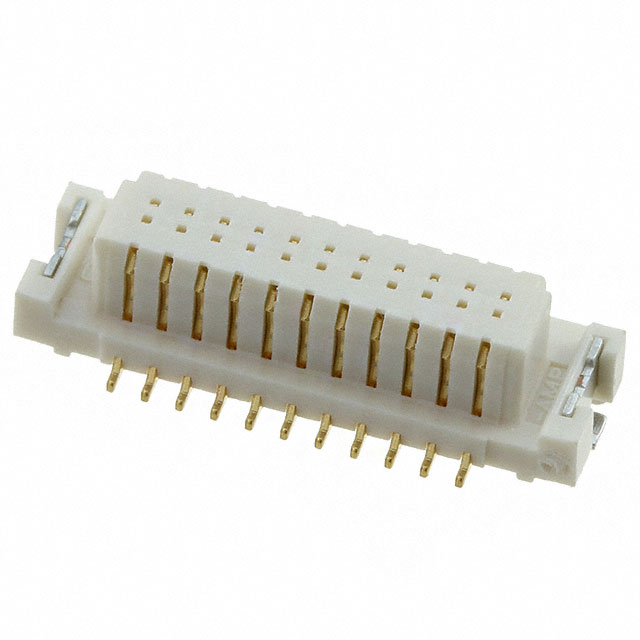

2-5917408-2
CONN RCPT 22POS SMD GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
TE Connectivity AMP Connectors Fine Mate series receptacle, part number 2-5917408-2, is a 22-position, 2-row surface mount connector designed for board-to-board applications. Its gold contact finish ensures reliable conductivity. This receptacle features board guides and solder retention for robust assembly. With a pitch of 0.031" (0.80mm) and a height above board of 0.126" (3.20mm), it supports mated stacking heights of 4mm and 4.5mm, making it suitable for mezzanine designs. This component is commonly utilized in telecommunications, automotive, and industrial automation sectors. The Fine Mate series offers high-density interconnect solutions. Supplied in Tape & Reel packaging for automated assembly. Connector Type: Receptacle, Center Strip Contacts.
Additional Information
Series: Fine MateRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 22 |
| Pitch | 0.031"" (0.80mm) |
| Height Above Board | 0.126"" (3.20mm) |
| Contact Finish Thickness | - |
| Mated Stacking Heights | 4mm, 4.5mm |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

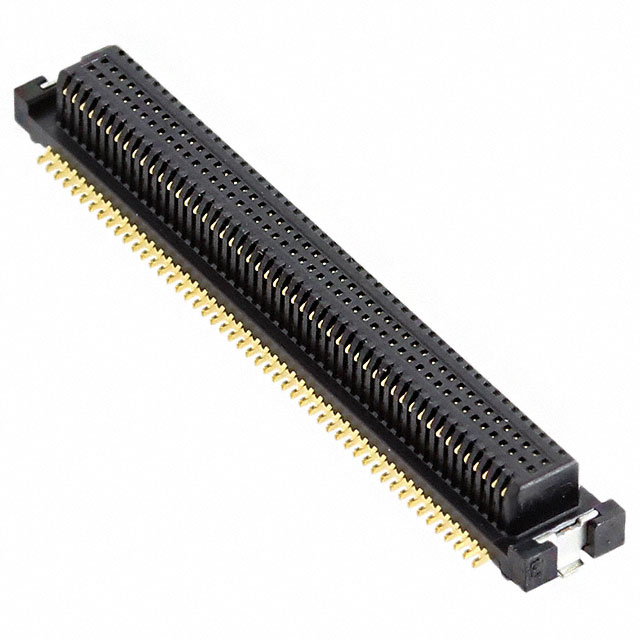

1565357-1
CONN RCPT 100POS SMD GOLD

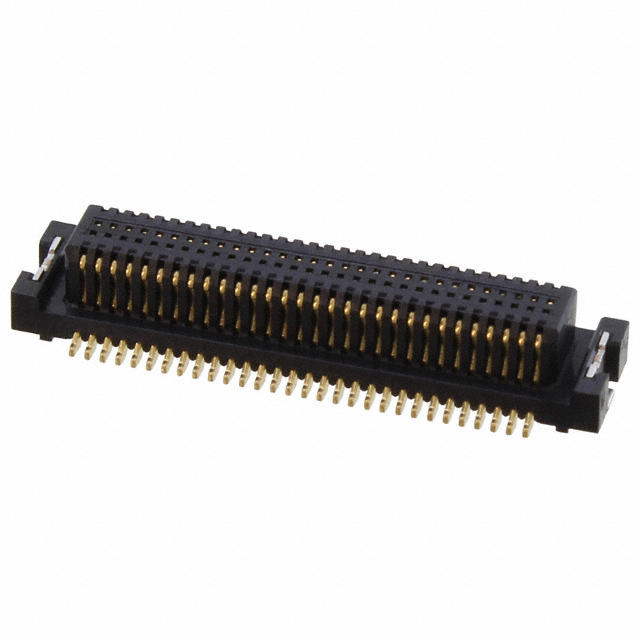

1565357-5
CONN RCPT 60POS SMD GOLD

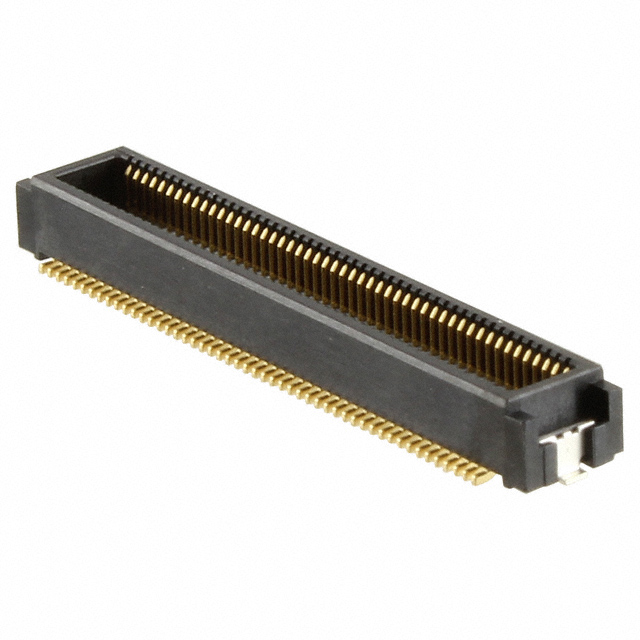

1565359-1
