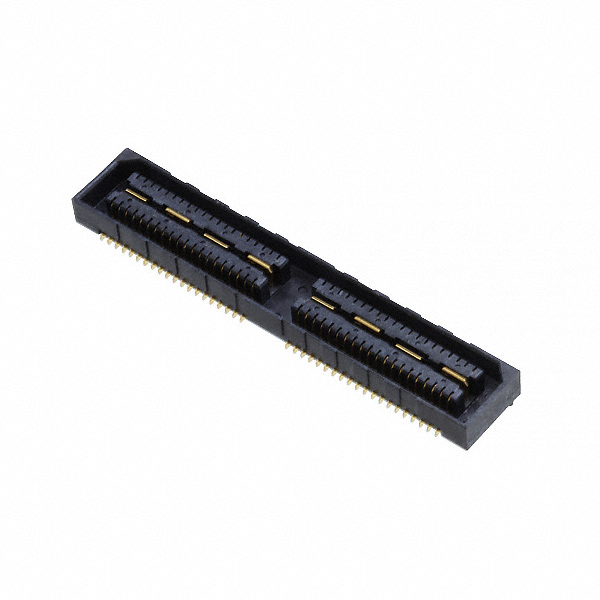

2-1658043-2
CONN RCPT 80POS SMD GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Additional Information
Series: MICTOR SBRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Ground Bus (Plane) |
| Packaging | Tray |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Pitch | 0.031"" (0.80mm) |
| Height Above Board | 0.128"" (3.25mm) |
| Contact Finish Thickness | FLASH |
| Mated Stacking Heights | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 22mm, 25mm, 30mm |
| Number of Rows | 2 |
