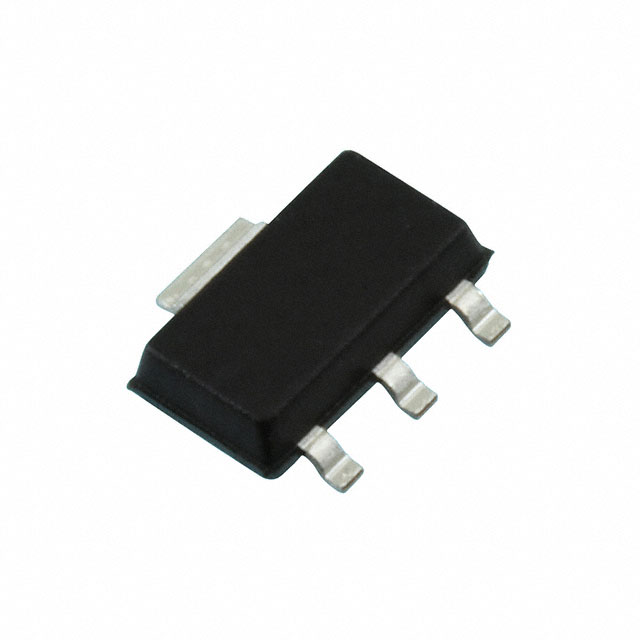

HAL506SF-A
MAGNETIC SWITCH UNIPOL SOT89B-1Manufacturer: TDK-Micronas GmbH
Categories: Switches (Solid State)
Quality Control: Learn More
TDK-Micronas GmbH HAL® 5xy series, part number HAL506SF-A, is a unipolar Hall effect switch. This digital switch features an open-drain output and is designed for surface mount applications in a SOT-89B-1 package, supplied on tape and reel. The device offers a broad supply voltage range from 3.8V to 24V with a maximum supply current of 4.2mA and maximum output current of 20mA. Its Hall effect technology provides a sensing range of 7.2mT for trip and 2mT for release. Key features include temperature compensation, ensuring stable operation across its wide operating temperature range of -40°C to 170°C (TJ). This component is suitable for applications requiring sensitive magnetic field detection, such as position sensing and speed detection in automotive and industrial automation systems.
Additional Information
Series: HAL® 5xyRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA, Variant |
| Output Type | Open Drain |
| Polarization | South Pole |
| Mounting Type | Surface Mount |
| Function | Unipolar Switch |
| Operating Temperature | -40°C ~ 170°C (TJ) |
| Voltage - Supply | 3.8V ~ 24V |
| Technology | Hall Effect |
| Sensing Range | 7.2mT Trip, 2mT Release |
| Current - Output (Max) | 20mA |
| Current - Supply (Max) | 4.2mA |
| Supplier Device Package | SOT-89B-1 |
| Test Condition | 25°C |
