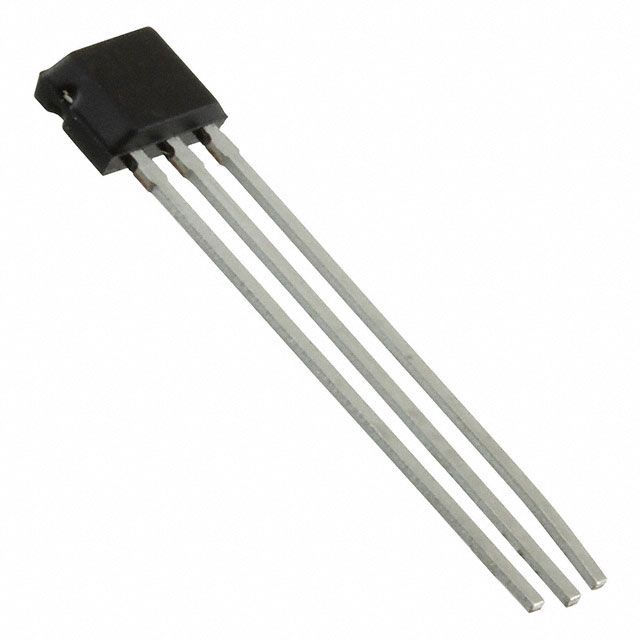

HAL506 UA-2
MAGNETIC SWITCH TO92UA-2Manufacturer: TDK-Micronas GmbH
Categories: Switches (Solid State)
Quality Control: Learn More
The TDK-Micronas GmbH HAL® 5xy HAL506-UA-2 is a temperature-compensated, open-drain Hall effect digital switch. Designed for robust operation, this component features a wide supply voltage range of 3.8V to 24V and a maximum supply current of 5.2mA, with a maximum output current of 20mA. The device is housed in a TO-92UA-2 package, suitable for through-hole mounting. Its operating temperature range spans from -40°C to 140°C (TJ), making it suitable for demanding environments. This Hall effect switch is utilized in automotive, industrial, and consumer electronics applications requiring reliable magnetic sensing. The HAL506-UA-2 is supplied in Tape & Box packaging.
Additional Information
Series: HAL® 5xyRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Box (TB) |
| Package / Case | TO-226-3, TO-92-3 Short Body |
| Output Type | Open Drain |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Voltage - Supply | 3.8V ~ 24V |
| Technology | Hall Effect |
| Current - Output (Max) | 20mA |
| Current - Supply (Max) | 5.2mA |
| Supplier Device Package | TO-92UA-2 |
