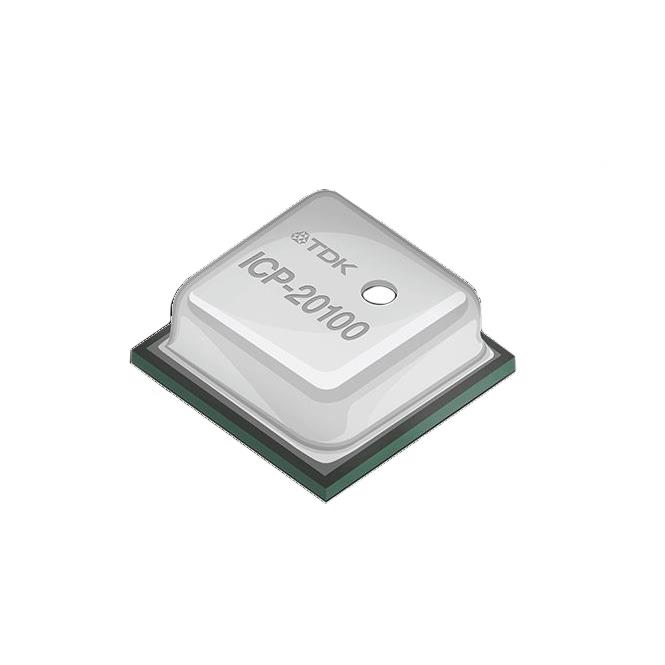

ICP-20100
SENSOR 15.95PSIA 20BIT 10LGAManufacturer: TDK InvenSense
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The TDK InvenSense ICP-20100 is an absolute pressure sensor with a wide operating range of 4.35 PSI to 15.95 PSI (30 kPa to 110 kPa). This component offers a 20-bit output resolution, accessible via I2C, I3C, and SPI interfaces, facilitating integration into complex digital systems. Its high accuracy of ±0.003 PSI (±0.02 kPa) makes it suitable for demanding applications. The ICP-20100 features a compact 10-VFLGA (2x2) surface mount package, designed for efficient board mounting. It operates across a temperature range of -40°C to 85°C and supports dual supply voltage ranges of 1.62V to 1.98V and 2.97V to 3.63V. This device finds application in areas requiring precise atmospheric or sealed-space pressure monitoring. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFLGA |
| Output Type | I2C, I3C, SPI |
| Mounting Type | Surface Mount |
| Output | 20 b |
| Operating Pressure | 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.003PSI (±0.02kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 1.62V ~ 1.98V, 2.97V ~ 3.63V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 10-LGA (2x2) |
| Port Style | No Port |
| Maximum Pressure | - |
Request a Quote
Clients Also Buy

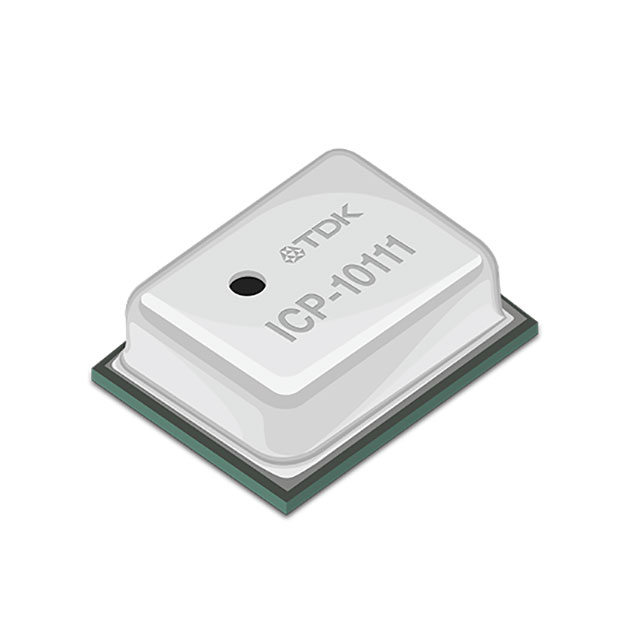

ICP-10111
SENSOR 15.95PSIA 8LGA

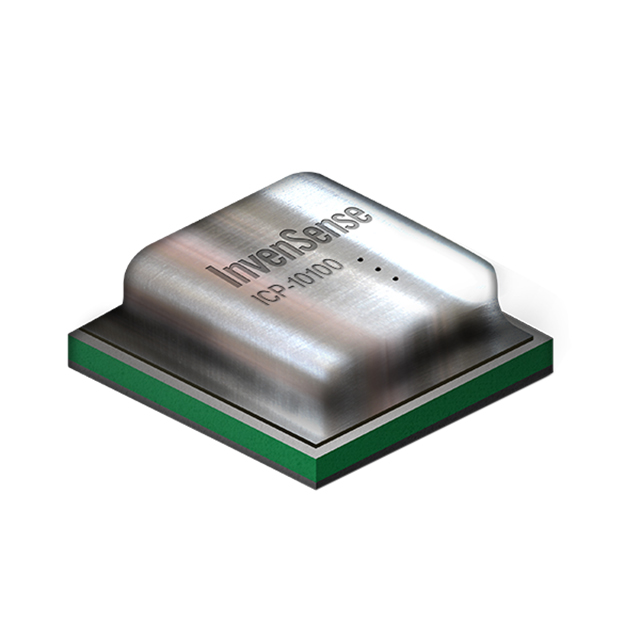

ICP-10100
SENSOR 15.95PSIA 10LGA

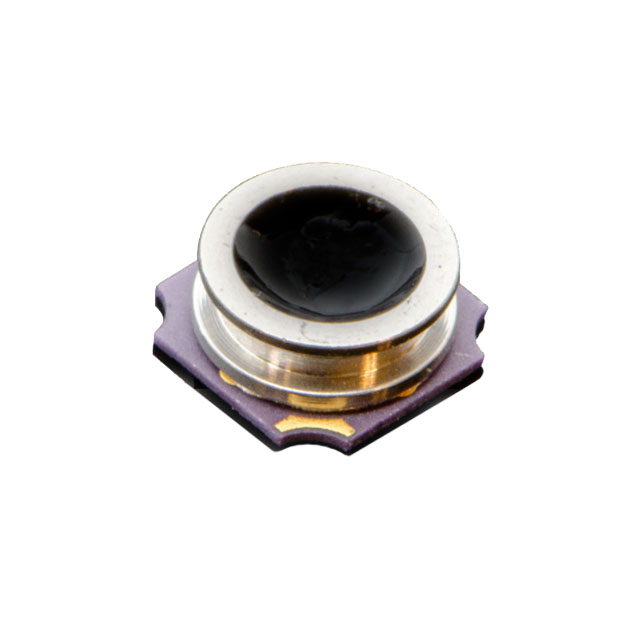

ICP-10125
