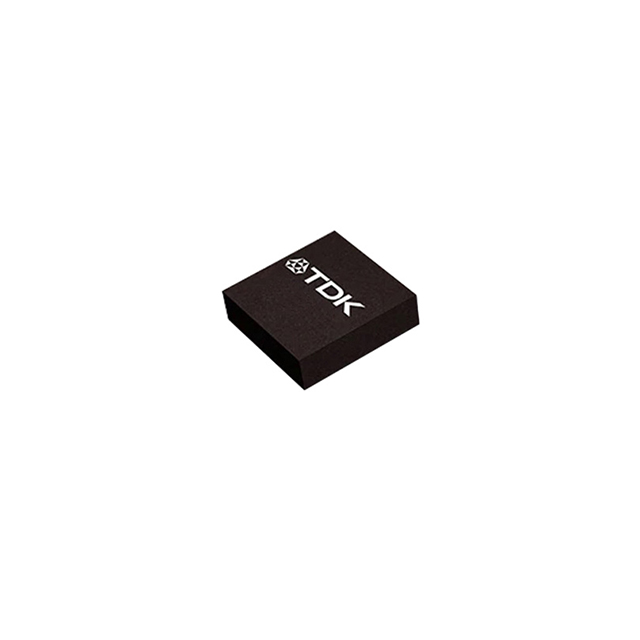

IDG-2020-AB
MEMS GYROSCOPE 2-AXIS 16QFNManufacturer: TDK InvenSense
Categories: Gyroscopes
Quality Control: Learn More
The TDK InvenSense IDG-2020-AB is a 2-axis MEMS gyroscope with selectable full-scale ranges of ±31.25, 62.5, 125, and 250 degrees per second. This digital output component supports both I2C and SPI interfaces, offering flexibility in system integration. Featuring adjustable bandwidth from 5Hz to 8.8kHz, it also includes a sleep mode and an integrated temperature sensor for enhanced functionality. The IDG-2020-AB is housed in a compact 16-WFLGA module package, suitable for applications in consumer electronics, industrial automation, and automotive systems. It operates within a supply voltage range of 1.71V to 3.6V and consumes 2.9 mA of current. The device is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Sleep Mode, Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFLGA Module |
| Output Type | I2C, SPI |
| Type | Digital |
| Axis | X (Pitch), Y (Roll) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.71V ~ 3.6V |
| Bandwidth | 5Hz ~ 8.8kHz |
| Range °/s | ±31.25, 62.5, 125, 250 |
| Sensitivity (mV/°/s) | - |
| Sensitivity (LSB/(°/s)) | 131 ~ 1048 |
| Current - Supply | 2.9 mA |
