DEA162690LT-1217A2
RF FILTER LOW PASS 2.495GHZ 0603Manufacturer: TDK Corporation
Categories: RF Filters
Quality Control: Learn More
TDK Corporation DEA162690LT-1217A2 is a 2.495GHz center frequency low pass RF filter from the DEA series. This component features a 390MHz bandwidth and a maximum insertion loss of 0.8dB. It is housed in a compact 0603 (1608 Metric) surface mount package with a 6 PC pad configuration. The filter's dimensions are 0.063" L x 0.032" W (1.60mm x 0.80mm) with a maximum height of 0.028" (0.70mm). This filter is suitable for applications within the wireless communication and consumer electronics industries. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: DEARoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
| Filter Type | Low Pass |
| Size / Dimension | 0.063"" L x 0.032"" W (1.60mm x 0.80mm) |
| Mounting Type | Surface Mount |
| Frequency | 2.495GHz Center |
| Insertion Loss | 0.8dB |
| Bandwidth | 390MHz |
| Ripple | - |
| Height (Max) | 0.028"" (0.70mm) |
Request a Quote
Clients Also Buy

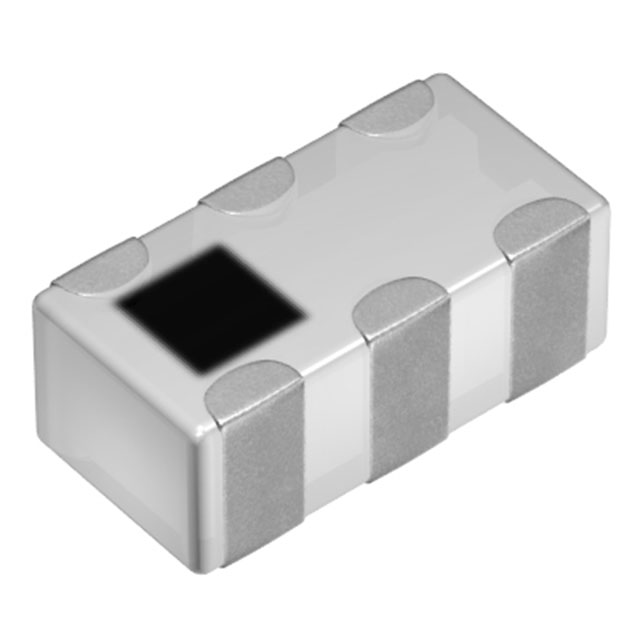

DEA162500LT-1217A1
