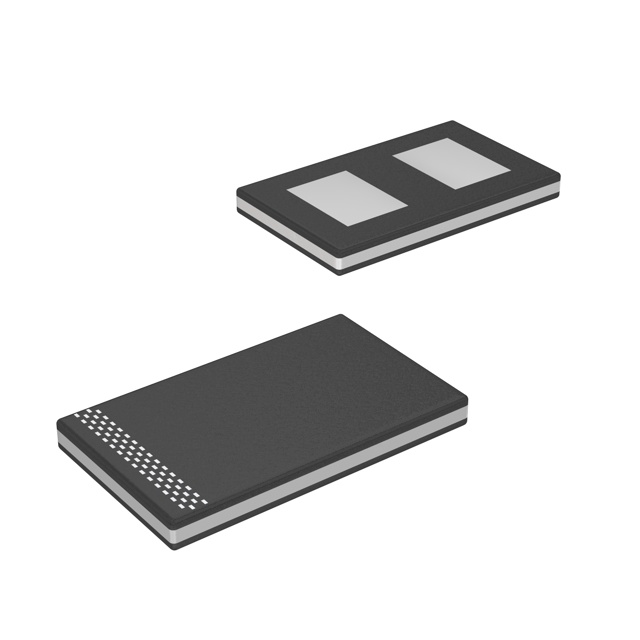

BCS5030G1
SENSOR PHOTODIODE 580NM 2012Manufacturer: TDK Corporation
Categories: Photodiodes
Quality Control: Learn More
TDK Corporation BCS5030G1 is a surface mount photodiode designed for optical sensing applications. This component features a peak spectral sensitivity at 580nm, with a broad spectral range from 350nm to 750nm. The device is housed in a compact 2012 (5030 Metric) package and offers an active area of 1.5mm². It exhibits a typical dark current of 100pA and a maximum reverse voltage rating of 6V. Operating across a temperature range of -20°C to 85°C, the BCS5030G1 is supplied on tape and reel. This photodiode is suitable for integration into various industrial and consumer electronics, including optical detection systems and sensor modules.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2012 (5030 Metric) |
| Wavelength | 580nm |
| Mounting Type | Surface Mount |
| Diode Type | - |
| Operating Temperature | -20°C ~ 85°C |
| Response Time | - |
| Viewing Angle | - |
| Spectral Range | 350nm ~ 750nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 1.5mm² |
| Current - Dark (Typ) | 100pA |
| Voltage - DC Reverse (Vr) (Max) | 6 V |
Request a Quote
Clients Also Buy
BCS2015H1
SENSOR PHOTODIODE 580NM 0806

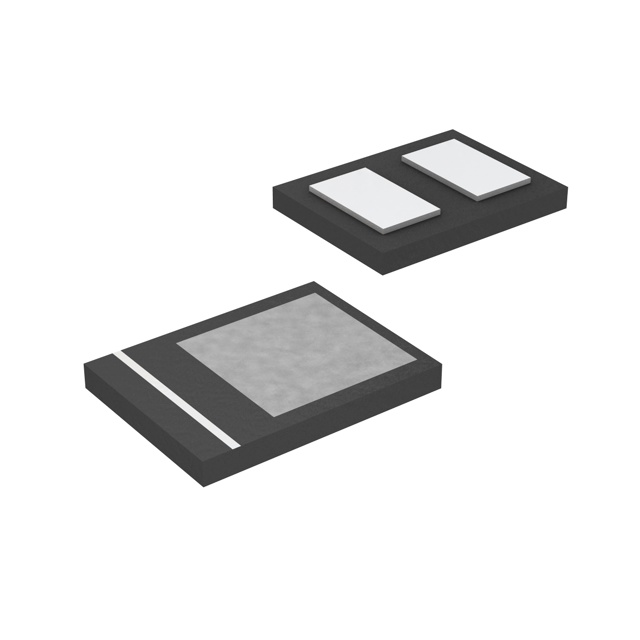

BCS2015A1
