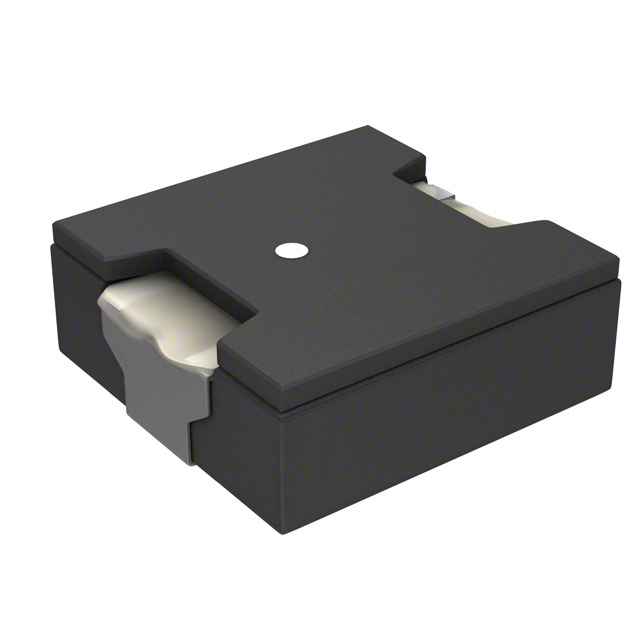

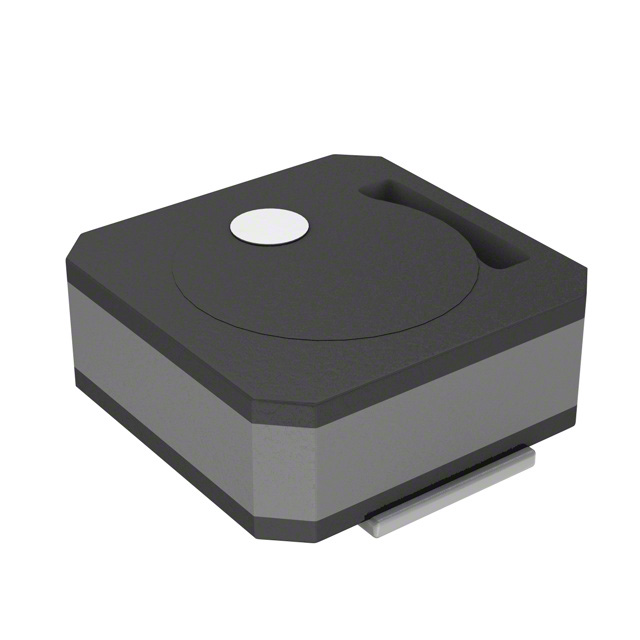

RLF12545T-100M5R1-PF
FIXED IND 10UH 5.1A 14.88MOHM SMManufacturer: TDK Corporation
Categories: Fixed Inductors
Quality Control: Learn More
The TDK Corporation RLF12545T-100M5R1-PF is a shielded wirewound drum core inductor with an inductance value of 10 µH. Engineered for demanding applications, this component features a current rating of 5.1 A and a saturation current (Isat) of 6 A, with a maximum DC resistance of 14.88 mOhm. Its construction utilizes a ferrite core and is designed for surface mounting with dimensions of 0.504 inches by 0.492 inches (12.80mm x 12.50mm) and a seated height of 0.185 inches (4.70mm). Operating within a temperature range of -40°C to 105°C, this inductor is supplied on tape and reel. The RLF series component is suitable for use in power conversion and filtering circuits across various industrial sectors.
Additional Information
Series: RLFRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.504"" L x 0.492"" W (12.80mm x 12.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 105°C |
| DC Resistance (DCR) | 14.88mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 6A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.185"" (4.70mm) |
| Inductance | 10 µH |
| Current Rating (Amps) | 5.1 A |
