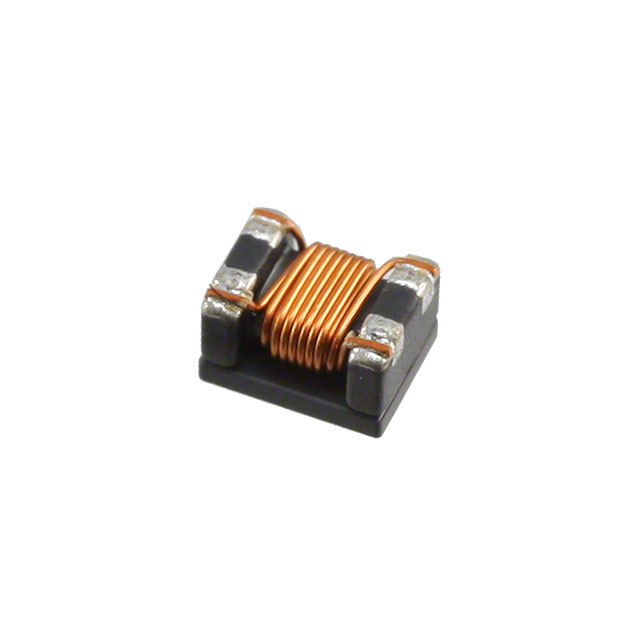

ACP3225-501-2P-T000
CMC 2A 2LN 500 OHM SMDManufacturer: TDK Corporation
Categories: Common Mode Chokes
Quality Control: Learn More
2 Line Common Mode Choke Surface Mount 500 Ohms @ 100 MHz 2A DCR 40mOhm (Typ)
Additional Information
Series: ACPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Horizontal, 4 PC Pad |
| Filter Type | Power Line |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Height (Max) | 0.079"" (2.00mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 60V |
| Current Rating (Max) | 2A |
| DC Resistance (DCR) (Max) | 40mOhm (Typ) |
| Impedance @ Frequency | 500 Ohms @ 100 MHz |
Request a Quote
Clients Also Buy

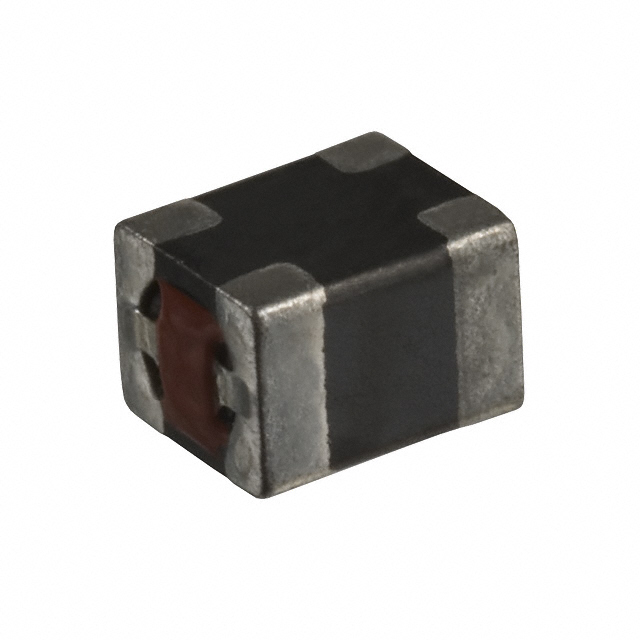

ACM3225-102-2P-T001
CMC 200MA 2LN 1K OHM SMD

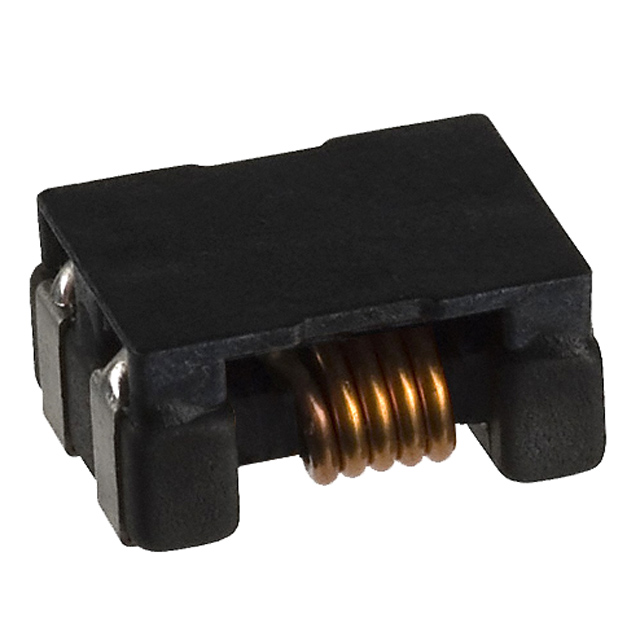

ACM7060-701-2PL-TL01
