FK20X5R1A156MN000
CAP CER 15UF 10V X5R RADIALManufacturer: TDK Corporation
Categories: Ceramic Capacitors
Quality Control: Learn More

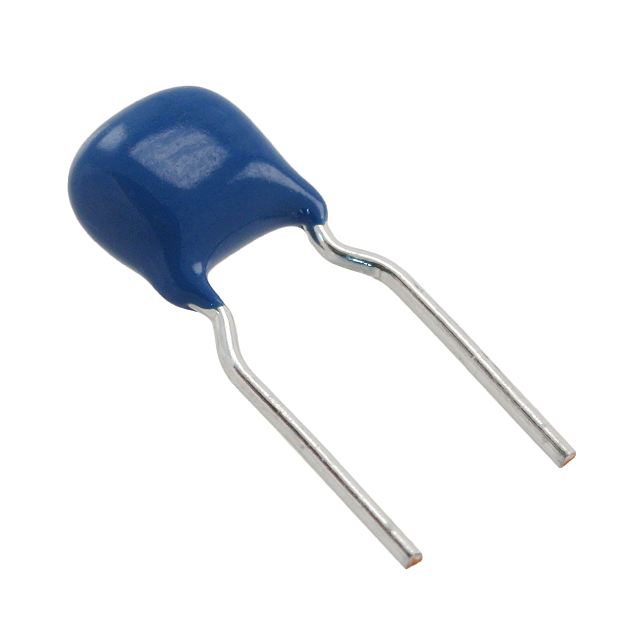

TDK Corporation FK Series radial ceramic capacitor, part number FK20X5R1A156MN000. This component offers a capacitance of 15 µF with a ±20% tolerance and a 10V rated voltage. Featuring an X5R temperature characteristic, it operates across a temperature range of -55°C to 85°C. The capacitor has a lead spacing of 0.197" (5.00mm) and a seated height of 0.276" (7.00mm), with kinked, formed leads for through-hole mounting. Its dimensions are 0.217" L x 0.157" W (5.50mm x 4.00mm). This component is suitable for general-purpose applications and is supplied in bulk packaging. It finds use in automotive and industrial electronics.
Additional Information
Series: FKRoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Lead Style | Formed Leads - Kinked |
| Features | - |
| Packaging | Bulk |
| Voltage - Rated | 10V |
| Package / Case | Radial |
| Temperature Coefficient | X5R |
| Size / Dimension | 0.217"" L x 0.157"" W (5.50mm x 4.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.197"" (5.00mm) |
| Ratings | - |
| Height - Seated (Max) | 0.276"" (7.00mm) |
| Thickness (Max) | - |
| Failure Rate | - |
| Capacitance | 15 µF |
