CKG57KX7R1V476M335JJ

CAP CER 47UF 35V X7R SMD

Quality Control: Learn More

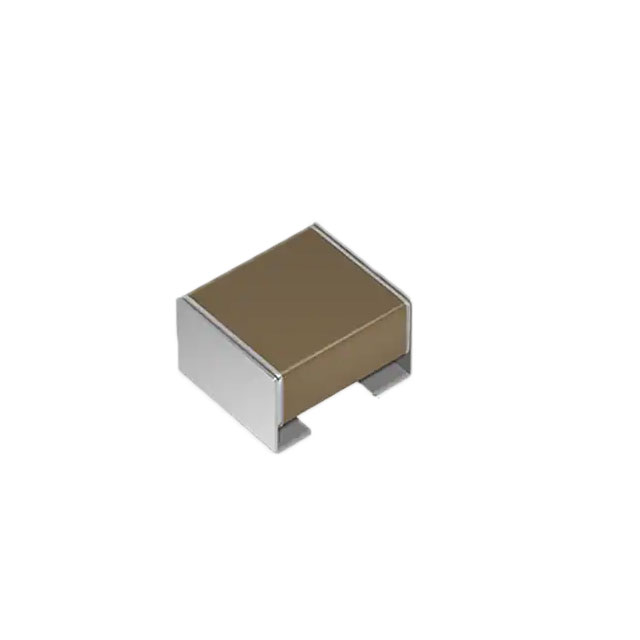

TDK Corporation CKG57KX7R1V476M335JJ is a 47 µF ±20% 35V ceramic capacitor from the MEGACAP CKG series. This surface mount device features an X7R dielectric and is supplied in a 6.00mm x 5.00mm x 3.50mm SMD package with J-leads. It operates across a temperature range of -55°C to 125°C and is AEC-Q200 qualified. This component is commonly utilized in automotive applications and switch-mode power supply (SMPS) filtering. The CKG57KX7R1V476M335JJ is provided in Tape & Reel (TR) packaging.

Additional Information

Series: MEGACAP, CKGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:

Download Free CAD Model:

Technical Details:

Tolerance	±20%
Lead Style	J-Lead
Features	-
Packaging	Tape & Reel (TR)
Voltage - Rated	35V
Package / Case	SMD, J-Lead
Temperature Coefficient	X7R
Size / Dimension	0.236"" L x 0.197"" W (6.00mm x 5.00mm)
Mounting Type	Surface Mount, MLCC
Operating Temperature	-55°C ~ 125°C
Applications	Automotive, SMPS Filtering
Lead Spacing	-
Ratings	AEC-Q200
Height - Seated (Max)	-
Thickness (Max)	0.138"" (3.50mm)
Failure Rate	-
Capacitance	47 µF
