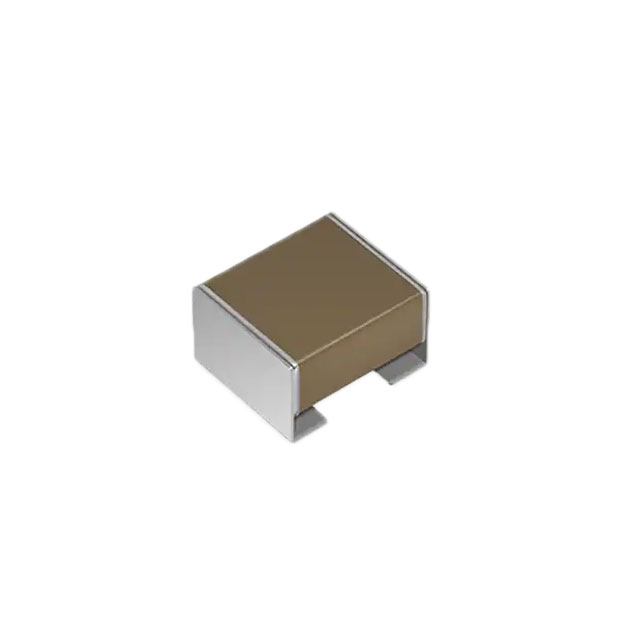

CKG57KX7R1V476M335JH
CAP CER 47UF 35V X7R SMDManufacturer: TDK Corporation
Categories: Ceramic Capacitors
Quality Control: Learn More
TDK Corporation CKG series MEGACAP ceramic capacitor, model CKG57KX7R1V476M335JH, offers 47 µF capacitance with a ±20% tolerance. Rated for 35V, this X7R dielectric component features a J-Lead termination and a surface mount, MLCC construction. Its dimensions are 6.00mm x 5.00mm with a maximum thickness of 3.50mm. Operating across a temperature range of -55°C to 125°C, this capacitor is supplied in Tape & Reel packaging. It is commonly utilized in Switch Mode Power Supply (SMPS) filtering applications.
Additional Information
Series: MEGACAP, CKGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Lead Style | J-Lead |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 35V |
| Package / Case | SMD, J-Lead |
| Temperature Coefficient | X7R |
| Size / Dimension | 0.236"" L x 0.197"" W (6.00mm x 5.00mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | SMPS Filtering |
| Lead Spacing | - |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.138"" (3.50mm) |
| Failure Rate | - |
| Capacitance | 47 µF |
