CKG45NX7R2E474M500JJ

CAP CER 0.47UF 250V X7R SMD

Manufacturer: TDK Corporation

Categories: Ceramic Capacitors

Quality Control: Learn More

The TDK Corporation CKG45NX7R2E474M500JJ is a 0.47 µF ±20% rated X7R ceramic capacitor designed for surface mount applications with its 2 J-Lead configuration. This component from the MEGACAP, CKG series features a stacked construction, contributing to its low Equivalent Series Inductance (ESL). Operating across a temperature range of -55°C to 125°C, this capacitor is rated for 250V and meets AEC-Q200 standards, making it suitable for demanding automotive applications, switch-mode power supply filtering, bypass, and decoupling functions. The capacitor measures 0.197 inches (5.00mm) in length by 0.138 inches (3.50mm) in width, with a maximum thickness of 0.217 inches (5.50mm). It is supplied in Tape & Reel packaging for efficient automated assembly.

Additional Information

Series: MEGACAP, CKGRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
Tolerance±20%
Lead StyleJ-Lead
FeaturesLow ESL (Stacked)
PackagingTape & Reel (TR)
Voltage - Rated250V
Package / CaseStacked SMD, 2 J-Lead
Temperature CoefficientX7R
Size / Dimension0.197"" L x 0.138"" W (5.00mm x 3.50mm)
Mounting TypeSurface Mount, MLCC
Operating Temperature-55°C ~ 125°C
ApplicationsAutomotive, SMPS Filtering, Bypass, Decoupling
Lead Spacing-
RatingsAEC-Q200
Height - Seated (Max)-
Thickness (Max)0.217"" (5.50mm)
Failure Rate-
Capacitance0.47 µF

Request a Quote

Name (required)

Phone (required)

Work Email (required)

Country (required)

Company Name (required)

CAPTCHA

Clients Also Buy
product image

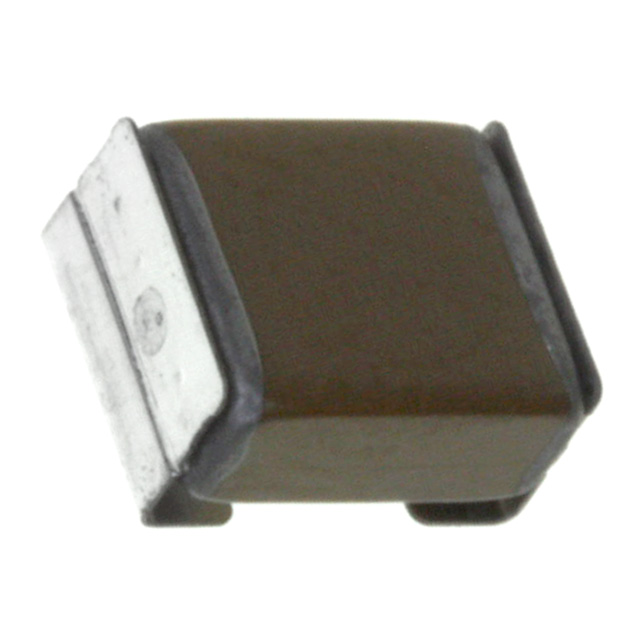

CKG57NX5R1E476M500JH
