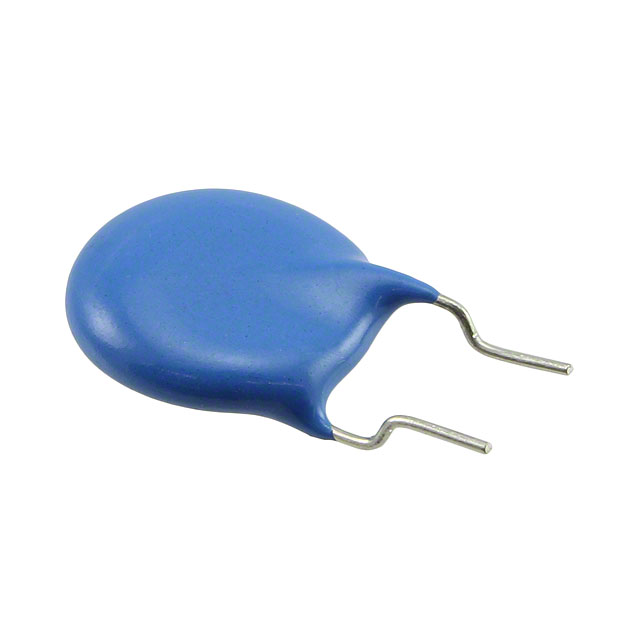

CK45-R3AD222KANRA

CAP CER 2200PF 1KV RADIAL

Manufacturer: TDK Corporation

Categories: Ceramic Capacitors

Quality Control: Learn More

TDK Corporation CK45-RR Series radial ceramic capacitor, part number CK45-R3AD222KANRA. This component offers a capacitance of 2200 pF with a ±10% tolerance and a 1000V (1kV) voltage rating. It features a Class 2 temperature characteristic with an R coefficient, ensuring stable performance across its operating temperature range of -40°C to 125°C. The capacitor is designed for through-hole mounting with a 7.50mm lead spacing and formed, kinked leads for ease of assembly. Its dimensions are 15.00mm in diameter with a seated height of 19.00mm. The CK45-R3AD222KANRA is AEC-Q200 qualified, making it suitable for demanding automotive applications. This high-voltage ceramic capacitor is supplied in bulk packaging.

Additional Information

Series: CK45-RRRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
Tolerance±10%
Lead StyleFormed Leads - Kinked
FeaturesHigh Voltage, Low Dissipation Factor
PackagingBulk
Voltage - Rated1000V (1kV)
Package / CaseRadial, Disc
Temperature CoefficientR
Size / Dimension0.591"" Dia (15.00mm)
Mounting TypeThrough Hole
Operating Temperature-40°C ~ 125°C
ApplicationsAutomotive
Lead Spacing0.295"" (7.50mm)
RatingsAEC-Q200
Height - Seated (Max)0.748"" (19.00mm)
Thickness (Max)-
Failure Rate-
Capacitance2200 pF
