CGA8L1X7T2J154K160KC
CAP CER 0.15UF 630V X7T 1812Manufacturer: TDK Corporation
Categories: Ceramic Capacitors
Quality Control: Learn More

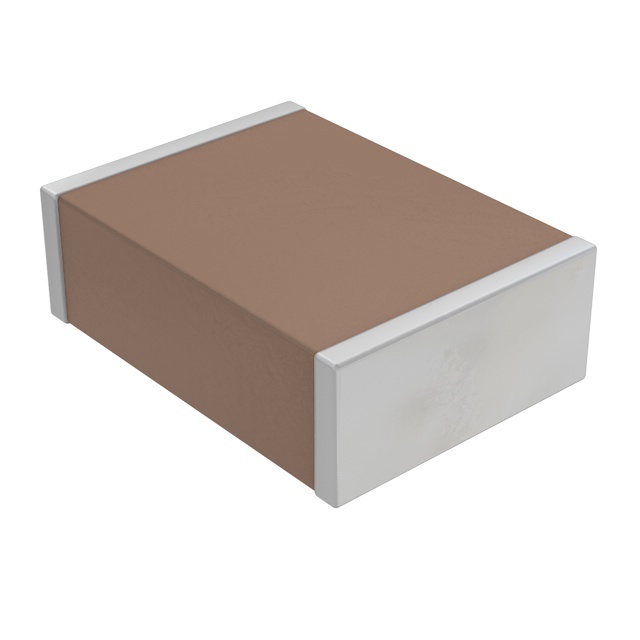

TDK Corporation CGA Series ceramic capacitor, part number CGA8L1X7T2J154K160KC. This MLCC features a capacitance of 0.15 µF with a ±10% tolerance and a voltage rating of 630V. Designed with an X7T temperature characteristic, it operates across a range of -55°C to 125°C. The component is housed in an 1812 (4532 Metric) package with dimensions of 0.177" L x 0.126" W (4.50mm x 3.20mm) and a maximum thickness of 0.071" (1.80mm). It is supplied in Tape & Reel packaging. This device is AEC-Q200 qualified, making it suitable for automotive applications.
Additional Information
Series: CGARoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Lead Style | - |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 630V |
| Package / Case | 1812 (4532 Metric) |
| Temperature Coefficient | X7T |
| Size / Dimension | 0.177"" L x 0.126"" W (4.50mm x 3.20mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Automotive |
| Lead Spacing | - |
| Ratings | AEC-Q200 |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.071"" (1.80mm) |
| Failure Rate | - |
| Capacitance | 0.15 µF |
