CGA6P1C0G3A223G250AC
AUTOMOTIVE GRADE,MLCC,1210,1000VManufacturer: TDK Corporation
Categories: Ceramic Capacitors
Quality Control: Learn More

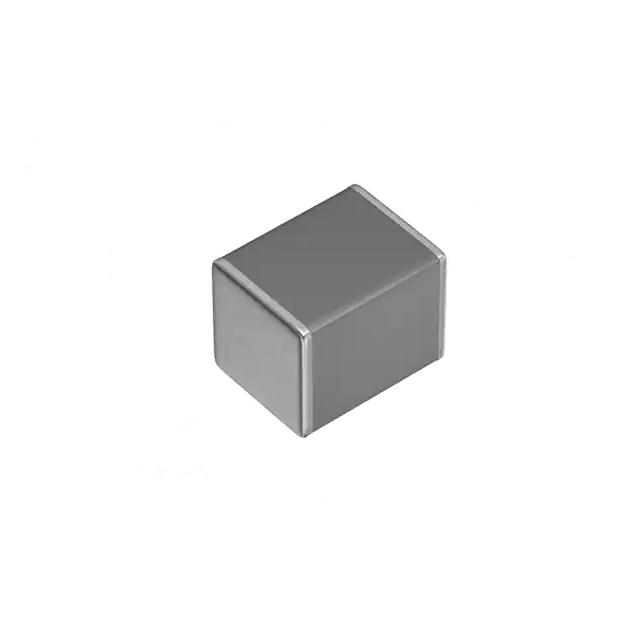

TDK Corporation CGA series 1210 (3225 Metric) multilayer ceramic capacitor, part number CGA6P1C0G3A223G250AC. This AEC-Q200 qualified component features a capacitance of 0.022 µF with a tight tolerance of ±2%. It is designed for high-voltage applications, rated at 1000V (1kV). The temperature coefficient is C0G, NP0, ensuring excellent temperature stability. Its dimensions are 0.126" L x 0.098" W (3.20mm x 2.50mm) with a maximum thickness of 0.110" (2.80mm). The operating temperature range is -55°C to 125°C. This surface mount MLCC is supplied in Tape & Reel (TR) packaging. It is suitable for use in automotive applications and SMPS filtering due to its robust construction and high voltage rating.
Additional Information
Series: CGARoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±2% |
| Lead Style | - |
| Features | High Voltage |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 1000V (1kV) |
| Package / Case | 1210 (3225 Metric) |
| Temperature Coefficient | C0G, NP0 |
| Size / Dimension | 0.126"" L x 0.098"" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Automotive, SMPS Filtering |
| Lead Spacing | - |
| Ratings | AEC-Q200 |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.110"" (2.80mm) |
| Failure Rate | - |
| Capacitance | 0.022 µF |
