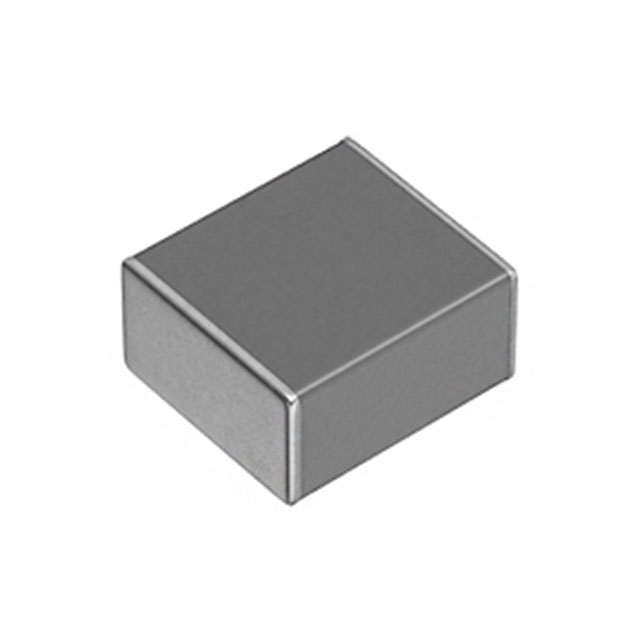

C5750C0G2A154J230KE
CAP CER 0.15UF 100V C0G/NP0 2220Manufacturer: TDK Corporation
Categories: Ceramic Capacitors
Quality Control: Learn More
TDK Corporation C Series ceramic capacitor, part number C5750C0G2A154J230KE. This MLCC features a capacitance of 0.15 µF with a tight ±5% tolerance and a 100VDC rating. The dielectric is C0G/NP0, ensuring excellent temperature stability and low dielectric loss, making it suitable for demanding applications where performance consistency is critical. Packaged in a 2220 (5750 Metric) case with dimensions of 5.70mm x 5.00mm and a maximum thickness of 2.60mm, this component is designed for surface mounting. It operates across a temperature range of -55°C to 125°C. The inclusion of soft termination technology enhances reliability in boardflex-sensitive applications. This component is commonly utilized in automotive electronics and industrial control systems. Supplied on tape and reel (TR).
Additional Information
Series: CRoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Lead Style | - |
| Features | Soft Termination |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 100V |
| Package / Case | 2220 (5750 Metric) |
| Temperature Coefficient | C0G, NP0 |
| Size / Dimension | 0.224"" L x 0.197"" W (5.70mm x 5.00mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Boardflex Sensitive |
| Lead Spacing | - |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.102"" (2.60mm) |
| Failure Rate | - |
| Capacitance | 0.15 µF |
