C4532C0G2J822K160KA
CAP CER 8200PF 630V C0G 1812Manufacturer: TDK Corporation
Categories: Ceramic Capacitors
Quality Control: Learn More

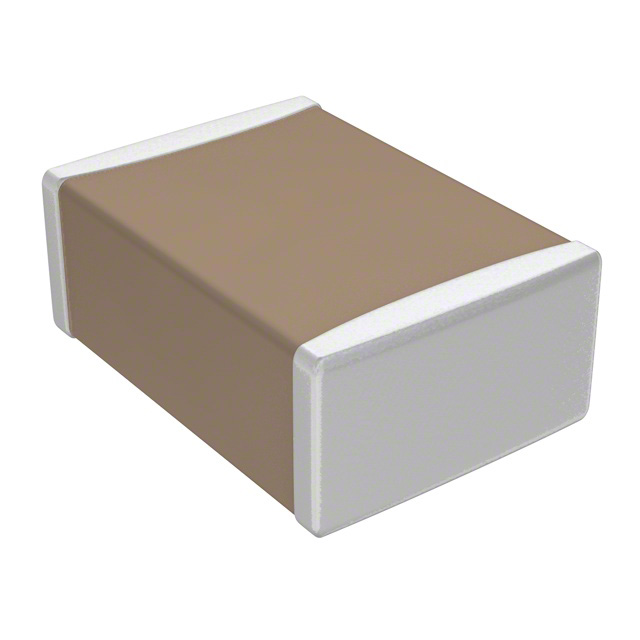

TDK Corporation's C Series C4532C0G2J822K160KA is an 8200 pF ±10% C0G (NP0) dielectric ceramic capacitor. This MLCC features a 630VDC voltage rating and is housed in an 1812 (4532 Metric) package with dimensions of 0.177 inches L x 0.126 inches W (4.50mm x 3.20mm) and a maximum thickness of 0.071 inches (1.80mm). It operates within a temperature range of -55°C to 125°C. The component is supplied on tape and reel. Applications for this general-purpose capacitor include power supplies, filtering, and decoupling in consumer electronics and industrial equipment.
Additional Information
Series: CRoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Lead Style | - |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 630V |
| Package / Case | 1812 (4532 Metric) |
| Temperature Coefficient | C0G, NP0 |
| Size / Dimension | 0.177"" L x 0.126"" W (4.50mm x 3.20mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.071"" (1.80mm) |
| Failure Rate | - |
| Capacitance | 8200 pF |
