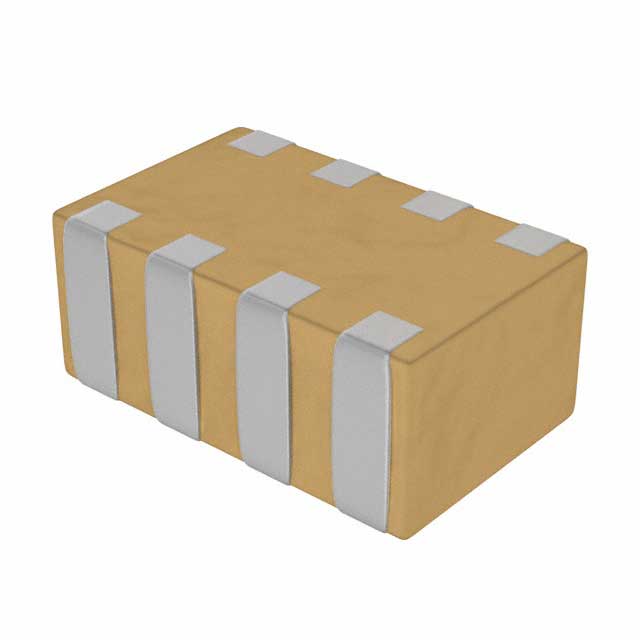

CKCA43JB1H103M100AA
CAP ARRAY 10000PF 50V JB 1206Manufacturer: TDK Corporation
Categories: Capacitor Networks, Arrays
Quality Control: Learn More
TDK Corporation CKC series CKCA43JB1H103M100AA is a 4-element isolated capacitor array with a capacitance of 10000pF per element. This ceramic capacitor network features a 50V voltage rating and a ±20% tolerance. The JB temperature coefficient indicates specific performance characteristics across a temperature range. Supplied in a compact 1206 (3216 Metric) surface-mount package, the array measures 0.126 inches long by 0.063 inches wide and has a maximum seated height of 0.045 inches. Packaged on tape and reel for automated assembly, this component is suitable for applications in consumer electronics and industrial control systems.
Additional Information
Series: CKCRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Circuit Type | Isolated |
| Capacitance | 10000pF |
| Package / Case | 1206 (3216 Metric) |
| Temperature Coefficient | JB |
| Size / Dimension | 0.126"" L x 0.063"" W (3.20mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Ratings | - |
| Dielectric Material | Ceramic |
| Supplier Device Package | 1206 (3216 Metric) |
| Height - Seated (Max) | 0.045"" (1.15mm) |
| Voltage - Rated | 50 V |
| Number of Capacitors | 4 |
