CXA-0549
INVERTER 12V-INPUT 1500V-OUTPUTManufacturer: TDK Corporation
Categories: Ballasts, Inverters
Quality Control: Learn More

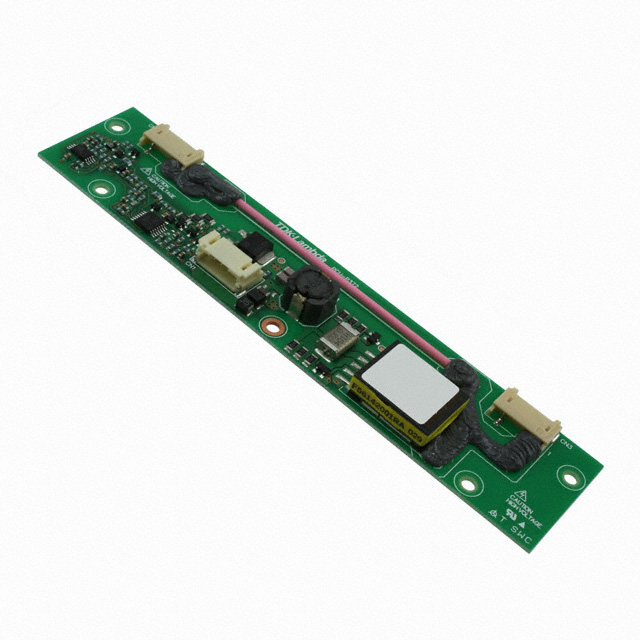

TDK Corporation CXA-0549 is a high-voltage inverter designed for CCFL and UV lamp applications. This chassis-mount component operates with an input voltage range of 10.8V to 13.2V, efficiently converting it to a 1500V output. Its compact dimensions of 5.51 inches (140mm) in length, 1.18 inches (30mm) in width, and 0.31 inches (8mm) in height make it suitable for integration into space-constrained designs. The CXA-0549 is commonly utilized in display backlighting and industrial UV curing systems. Supplied in tray packaging, this TDK Corporation inverter provides reliable power conversion for demanding illumination requirements.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Size / Dimension | 5.51"" L x 1.18"" W x 0.31"" H (140mm x 30mm x 8mm) |
| Mounting Type | Chassis Mount |
| Output | 1500V |
| Voltage - Input | 10.8 ~ 13.2V |
| Type | CCFL and UV Lamps |
