CXA-0543
INVERTER 12V-INPUT 1250V-OUTPUTManufacturer: TDK Corporation
Categories: Ballasts, Inverters
Quality Control: Learn More

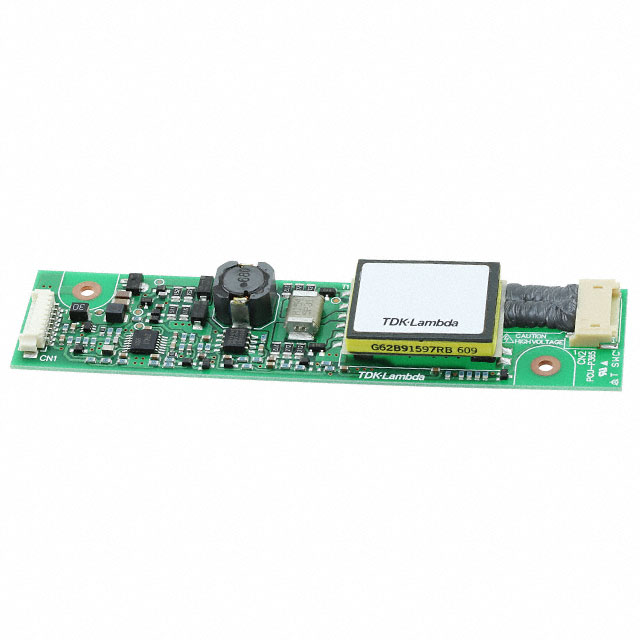

TDK Corporation CXA-0543 is a robust inverter designed for driving CCFL and UV lamps. This chassis-mount component operates with an input voltage range of 10.8V to 13.2V, delivering a high output voltage of 1200V. Its compact dimensions of 4.13 inches (105mm) in length, 0.95 inches (25mm) in width, and 0.33 inches (8.5mm) in height make it suitable for integration into space-constrained applications. The CXA-0543 is commonly utilized in backlighting solutions for displays and in various UV curing systems. Packaged in trays, this electronic component ensures efficient handling during manufacturing processes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Size / Dimension | 4.13"" L x 0.95"" W x 0.33"" H (105mm x 25mm x 8.5mm) |
| Mounting Type | Chassis Mount |
| Output | 1200V |
| Voltage - Input | 10.8 ~ 13.2V |
| Type | CCFL and UV Lamps |
