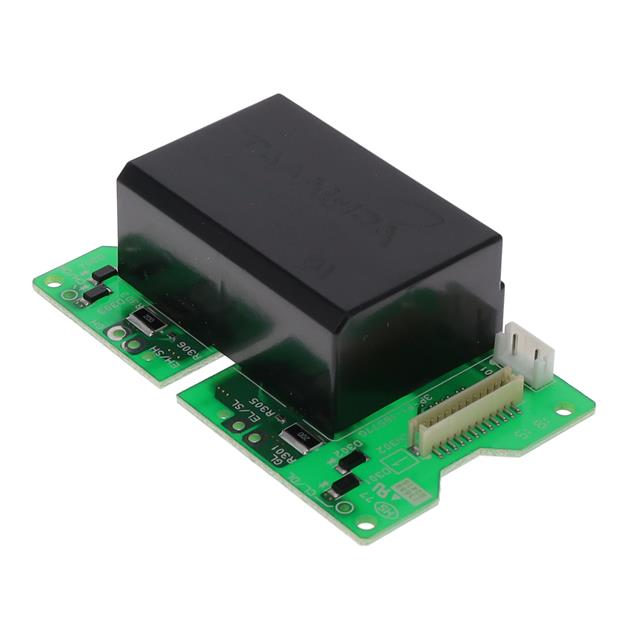

2DU180506MR03
IC GATE DRVR HALF-BRIDGE MODULEManufacturer: Tamura
Categories: Gate Drivers
Quality Control: Learn More
Tamura 2DU180506MR03 is a Half-Bridge Gate Driver IC Module designed for driving Silicon Carbide (SiC) MOSFETs. This module features independent channels for precise control of each SiC device within a half-bridge configuration. The input logic voltage thresholds are specified at 0.8V for VIL and 2V for VIH, ensuring compatibility with standard logic levels. The module operates from a 5V supply voltage. Designed for robust performance, it offers typical rise and fall times of 500ns. The 2DU180506MR03 is chassis mounted and supplied in bulk packaging. This component is integral to power conversion systems across industries such as industrial automation, electric vehicles, and renewable energy.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Input Type | - |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 500ns, 500ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | SiC MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | - |
| Programmable | Not Verified |
