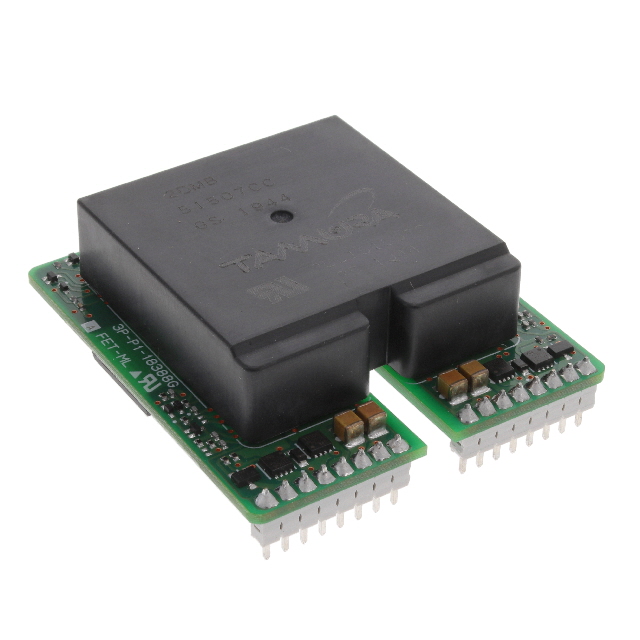

2DMB51507CC
IC GATE DRVR HALF-BRIDGE MODULEManufacturer: Tamura
Categories: Gate Drivers
Quality Control: Learn More
The Tamura 2DMB51507CC is a half-bridge gate driver IC module designed for efficient control of power semiconductor devices. This non-inverting module provides independent control for two drivers, enabling precise operation of IGBT and SiC MOSFET power stages. Operating across a supply voltage range of 3V to 5.5V, the 2DMB51507CC features a typical rise and fall time of 500ns, facilitating optimized switching performance. Its through-hole mounting package ensures robust integration into complex board designs. This component is extensively utilized in industrial power supplies, electric vehicle powertrains, and renewable energy inverters. The module operates reliably within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 5.5V |
| Input Type | Non-Inverting |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 500ns, 500ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, SiC MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | - |
| Programmable | Not Verified |
