2CG010DBC12N
IC GATE DRVR HALF-BRIDGE MODULEManufacturer: Tamura
Categories: Gate Drivers
Quality Control: Learn More
Tamura Half-Bridge Gate Driver IC, Part Number 2CG010DBC12N, offers an independent channel configuration for driving IGBT and SiC MOSFET devices. This non-inverting module provides a robust half-bridge gate drive solution with peak output currents of 43A sourcing and sinking. The device operates from a supply voltage range of 13V to 28V, with logic high and low input thresholds of 3.85V and 1.65V respectively. Featuring a through-hole mounting type, the 2CG010DBC12N is designed for applications demanding high-current switching, commonly found in industrial motor control, power factor correction, and electric vehicle powertrains. The module package ensures straightforward integration into existing board designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 13V ~ 28V |
| Input Type | Non-Inverting |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 500ns, 500ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, SiC MOSFET |
| Logic Voltage - VIL, VIH | 1.65V, 3.85V |
| Current - Peak Output (Source, Sink) | 43A, 43A |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

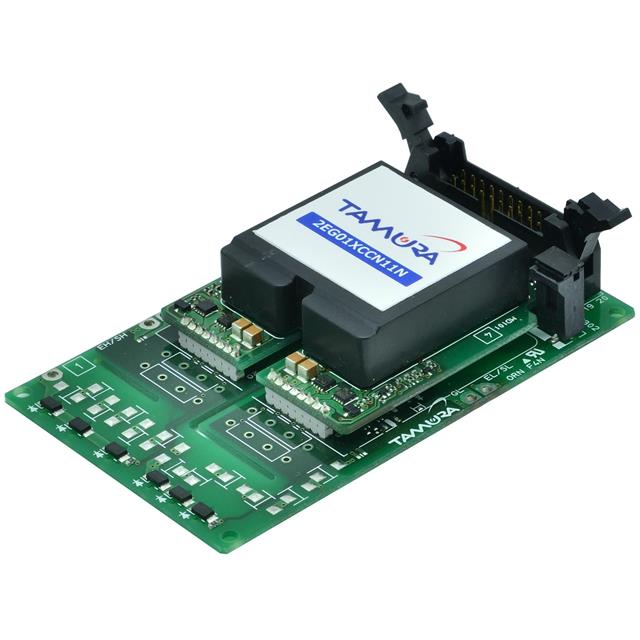

2EG01XCDN11N
IC GATE DRVR HALF-BRIDGE MODULE

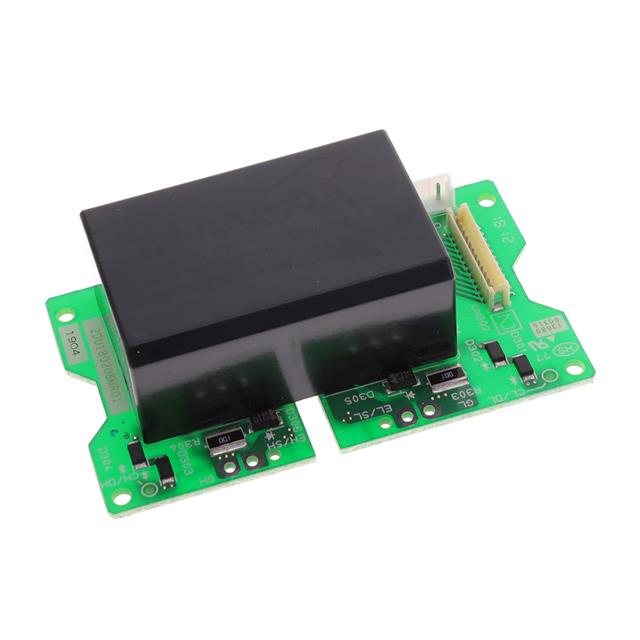

2DU180206MR01
