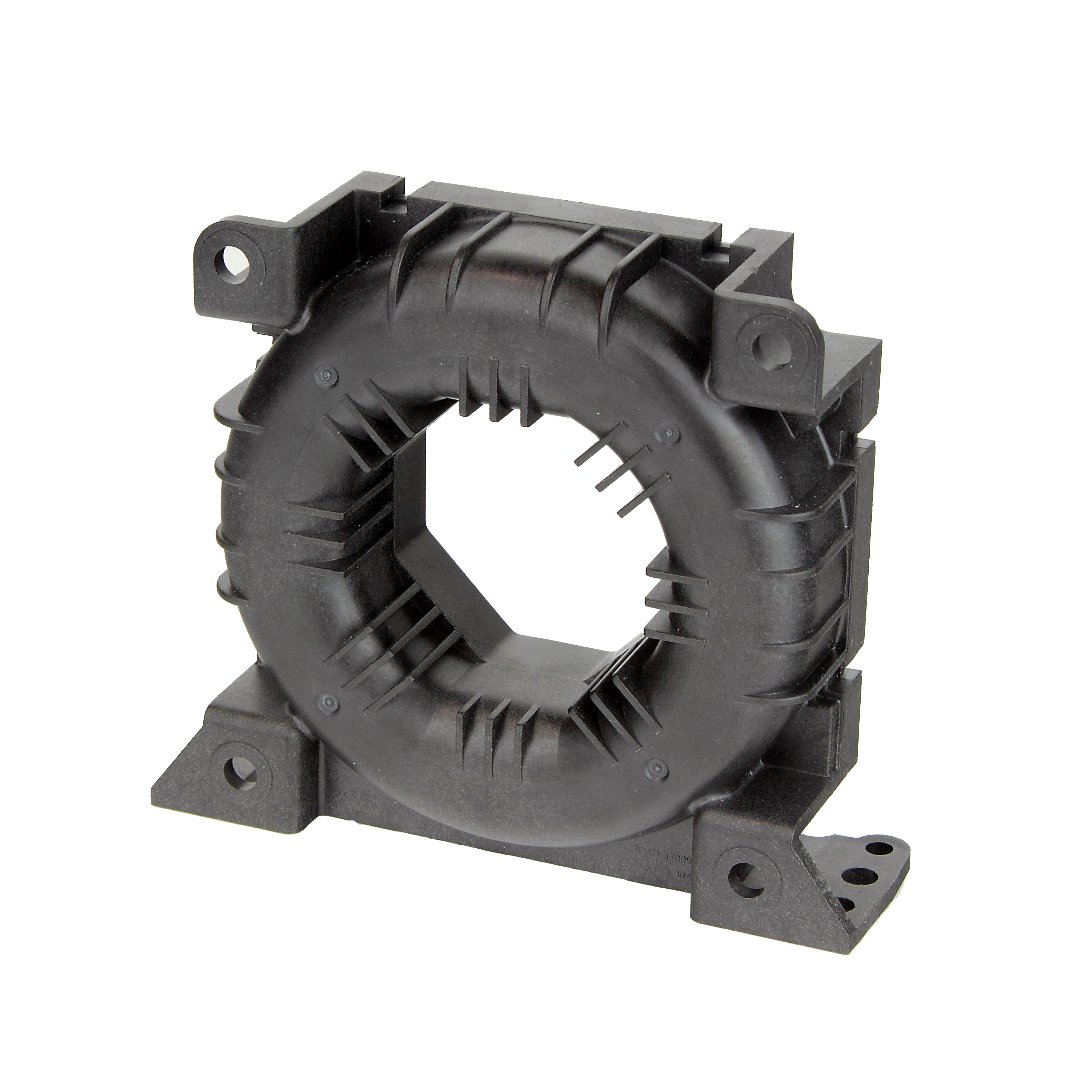

S42S1T0D24Z
CURRENT SENSOR (1000A; 24V; 5000Manufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura S42S D24 series current sensor, part number S42S1T0D24Z, is a closed-loop Hall effect module designed for high-current sensing applications. This bidirectional, single-channel unit supports a sensing range of up to 1000A AC/DC with a high frequency response up to 250kHz. Key performance specifications include ±0.3% accuracy and ±0.1% linearity. The module operates from a ±15V to ±24V supply, drawing a maximum of 45mA. Output is ratiometric. The S42S1T0D24Z features a single pass-through design for easy integration and chassis mounting. It is suitable for demanding industrial environments, operating within a -40°C to 85°C temperature range. This component finds application in power conversion, electric vehicle charging, and industrial motor control.
Additional Information
Series: S42S D24RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Current |
| Frequency | DC ~ 250kHz |
| Accuracy | ±0.3% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±15V ~ 24V |
| Response Time | 500ns |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 45mA |
| Current - Sensing | 1000A |
| Number of Channels | 1 |
