S30S2T0D24ZM
CURRENT SENSOR (2000A; 24V; 5000Manufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More

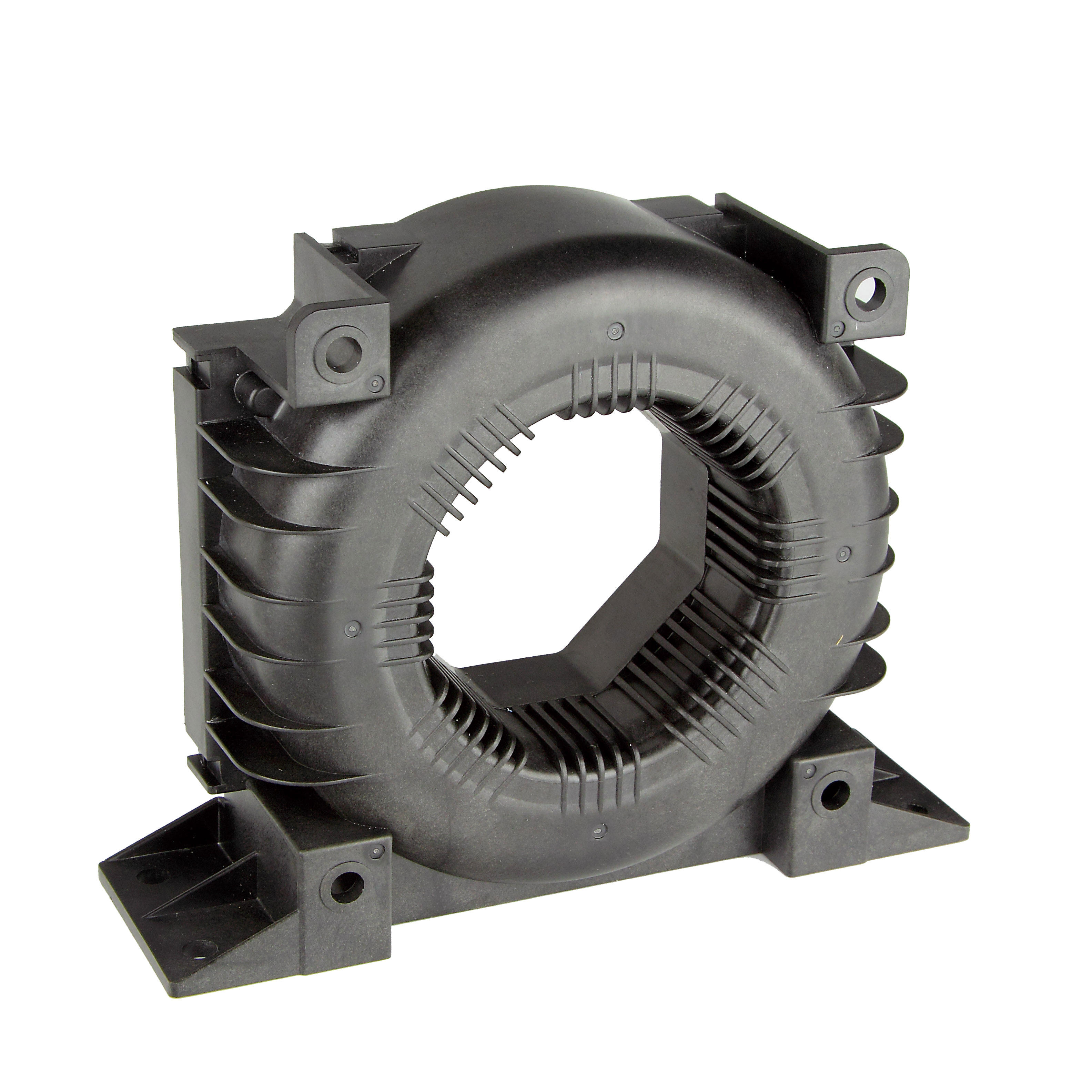

Tamura S30S D24 Series Hall Effect Current Sensor, part number S30S2T0D24ZM. This closed-loop, bidirectional module offers precise DC to 150kHz current sensing for applications up to 2000A. Featuring a single-pass-through design and chassis mount, it provides ratiometric output with ±0.3% accuracy and ±0.1% linearity. The sensor operates with a supply voltage range of ±15V to 24V, drawing a maximum of 45mA. Its 500ns response time ensures rapid detection of AC and DC current fluctuations. Common applications include power distribution, industrial motor control, and renewable energy systems.
Additional Information
Series: S30S D24RoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Current |
| Frequency | DC ~ 150kHz |
| Accuracy | ±0.3% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±15V ~ 24V |
| Response Time | 500ns |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 45mA |
| Current - Sensing | 2000A |
| Number of Channels | 1 |
