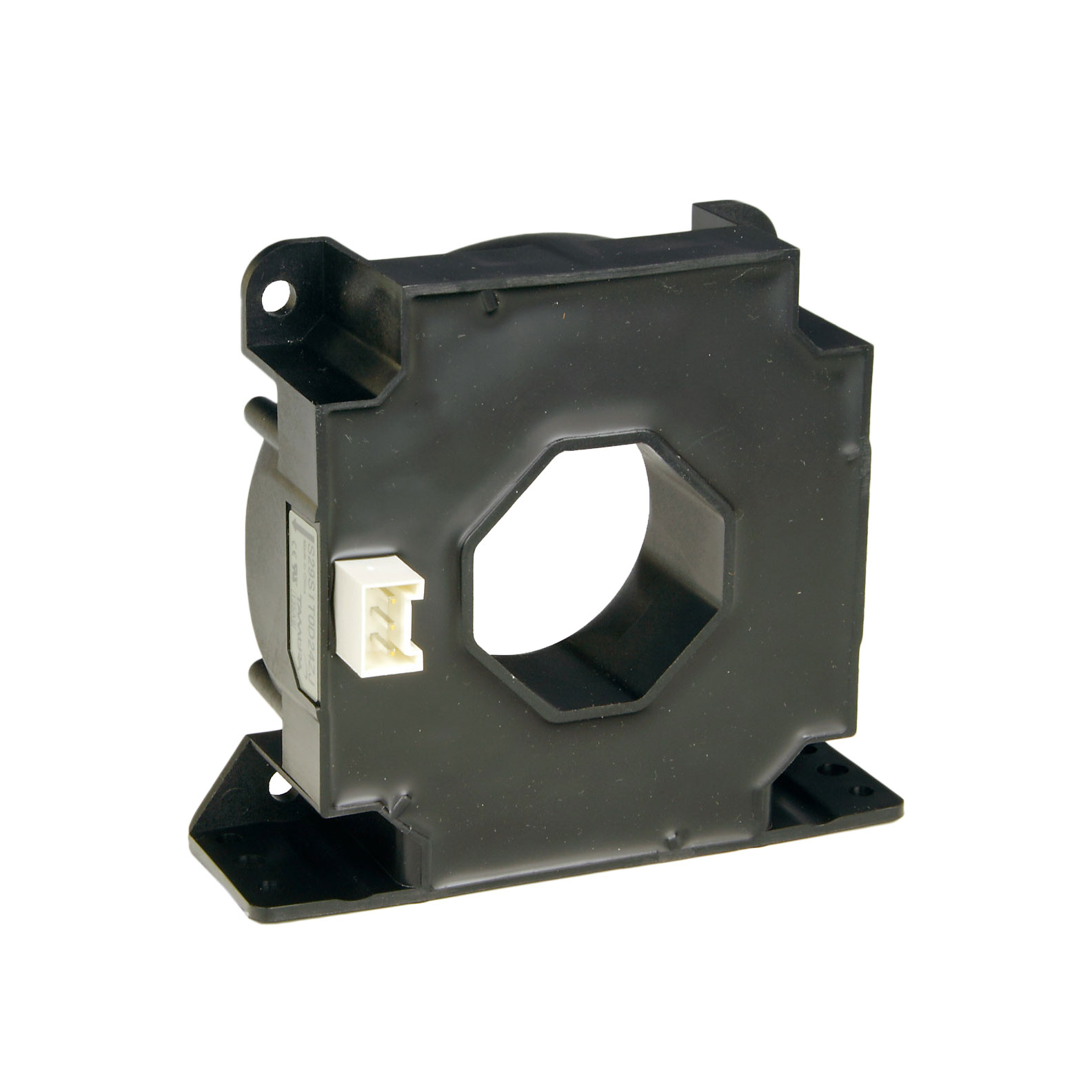

The Tamura S29S1T0D24ZJ is a closed-loop Hall effect current sensor designed for precise bidirectional current measurement. This module features a single pass-through design, capable of sensing up to 1000A AC/DC with a wide frequency response from DC to 100kHz. The sensor offers excellent accuracy and linearity of ±0.1%, ensuring reliable performance in demanding applications. Operating within a temperature range of -40°C to 85°C, it is suitable for industrial automation, power supplies, electric vehicle charging, and renewable energy systems. The S29S1T0D24ZJ requires a supply voltage between ±15V and ±24V. Output is provided in a ratiometric current format, with a typical response time of 1µs.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | - |
| Output | Ratiometric, Current |
| Frequency | DC ~ 100kHz |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±15V ~ 24V |
| Response Time | 1µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 200mA |
| Current - Sensing | 1000A |
| Supplier Device Package | - |
| Number of Channels | 1 |
