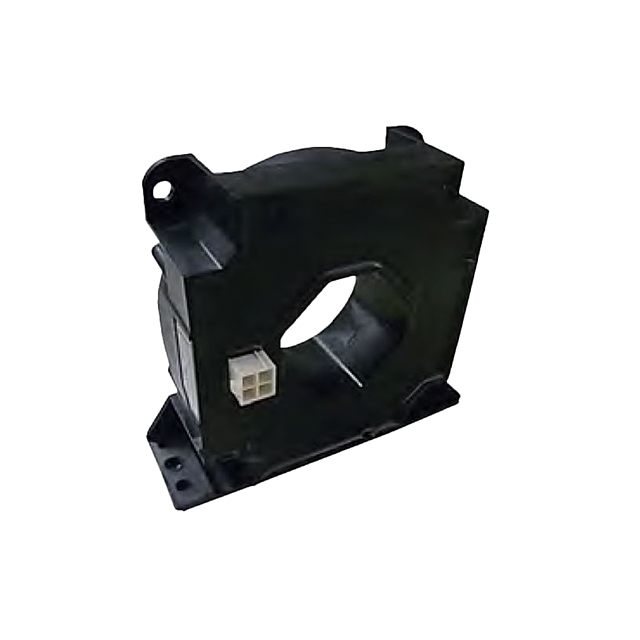

Tamura S29S1T0D24Z is a high-precision Hall Effect current sensor designed for demanding applications. This closed-loop, bidirectional module features a single pass-through design capable of sensing up to 1000A. It offers exceptional accuracy and linearity of ±0.1%, ensuring reliable measurements across AC and DC signals from DC to 100kHz. The output is ratiometric and current-based, providing a direct representation of the sensed current. Operating within a ±15V to ±24V supply range and consuming a maximum of 200mA, the S29S1T0D24Z boasts a rapid 1µs response time. Its robust construction and performance characteristics make it suitable for industrial automation, power conversion, and electric vehicle systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | - |
| Output | Ratiometric, Current |
| Frequency | DC ~ 100kHz |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±15V ~ 24V |
| Response Time | 1µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 200mA |
| Current - Sensing | 1000A |
| Supplier Device Package | - |
| Number of Channels | 1 |
