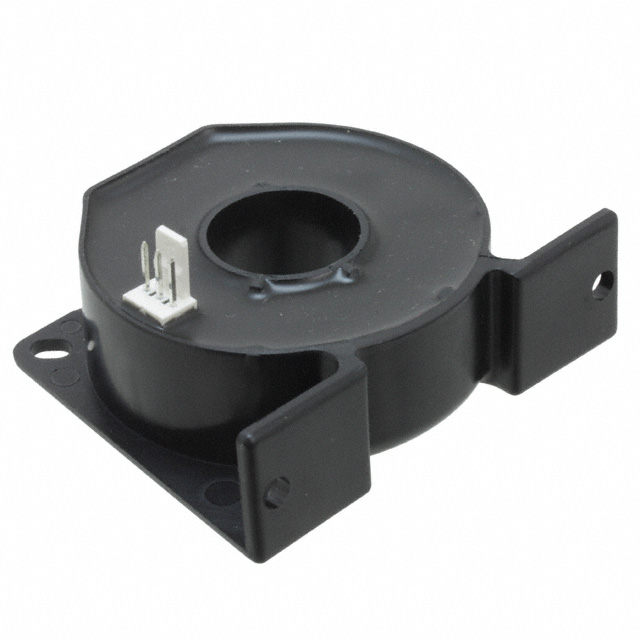

S27S300D15YM
SENSOR CURRENT HALL 300A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura S27S300D15YM is a closed-loop Hall effect current sensor designed for accurate AC/DC current measurement up to 300A. This single-channel module offers exceptional linearity of ±0.1% and an accuracy of ±0.4%, making it suitable for demanding applications. It operates with a bidirectional, ratiometric current output over a wide supply voltage range of ±12V to ±20V, drawing a maximum of 20mA. The sensor is engineered for panel mounting and features a fast response time of 1µs, with a frequency response from DC up to 100kHz. This component is widely utilized in industrial automation, power supplies, and electric vehicle systems where precise current monitoring is critical. The S27S300D15YM is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Panel Mount |
| Output | Ratiometric, Current |
| Frequency | DC ~ 100kHz |
| Accuracy | ±0.4% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±12V ~ 20V |
| Response Time | 1µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 20mA |
| Current - Sensing | 300A |
| Supplier Device Package | - |
| Number of Channels | 1 |
