S23P50/100D15M1
SENSOR CURRENT HALL 100A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More

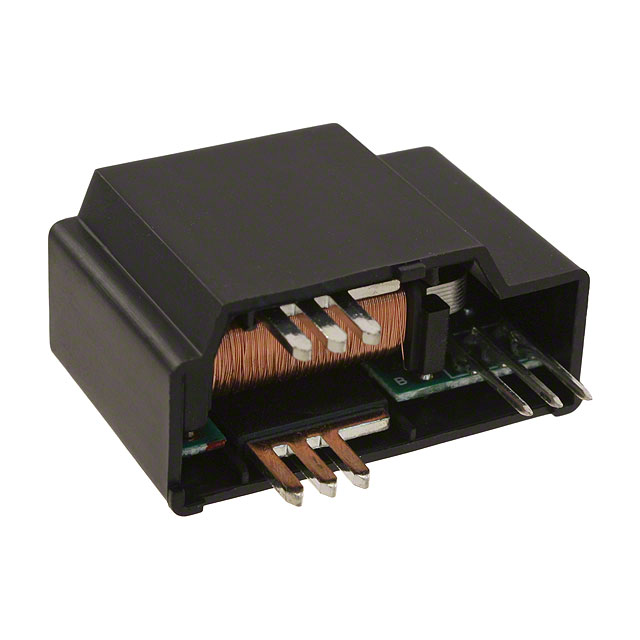

Tamura S23P50-100D15M1 is a closed-loop Hall effect current sensor module designed for precise AC/DC current measurement up to 100A. This bidirectional sensor offers excellent accuracy with a typical ±0.25% reading error and ±0.15% linearity. Operating over a wide frequency range from DC to 100kHz, it provides a ratiometric current output signal. The module requires a supply voltage of ±12V to ±15V with a maximum current draw of 50mA. Featuring a fast response time of 0.5µs, it is suitable for applications in industrial automation, power supplies, and electric vehicle systems. The through-hole mounting facilitates integration into various circuit designs.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Current |
| Frequency | DC ~ 100kHz |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 0.5µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.15% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 50mA |
| Current - Sensing | 100A |
| Supplier Device Package | - |
| Number of Channels | 1 |
