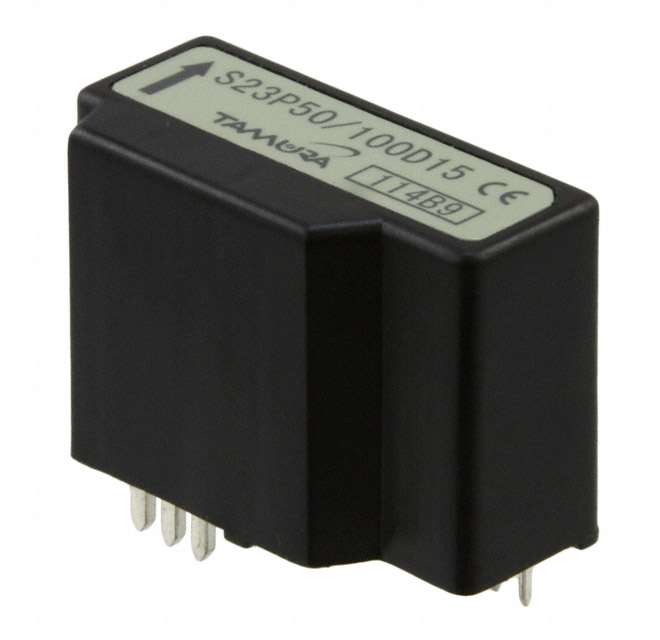

S23P50/100D15
SENSOR CURRENT HALL 50A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura S23P50-100D15 is a closed-loop Hall Effect current sensor designed for precise AC/DC current measurement up to 50A. This bidirectional module operates with a supply voltage range of ±12V to ±15V, drawing a maximum of 25mA. Featuring a ratiometric current output, it offers excellent accuracy with a ±0.25% typical and ±0.15% linearity. The sensor supports a wide frequency response from DC up to 100kHz, with a rapid 0.5µs response time. Its through-hole mounting facilitates integration into various PCB designs. This component is widely utilized in power supplies, industrial automation, electric vehicle charging, and renewable energy systems. The Tamura S23PXXXD15 series sensor is supplied in bulk packaging.
Additional Information
Series: S23PXXXD15RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Current |
| Frequency | DC ~ 100kHz |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 0.5µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.15% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 25mA |
| Current - Sensing | 50A |
| Supplier Device Package | - |
| Number of Channels | 1 |
