S22P015S05
SENSOR CURRENT HALL 15A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More

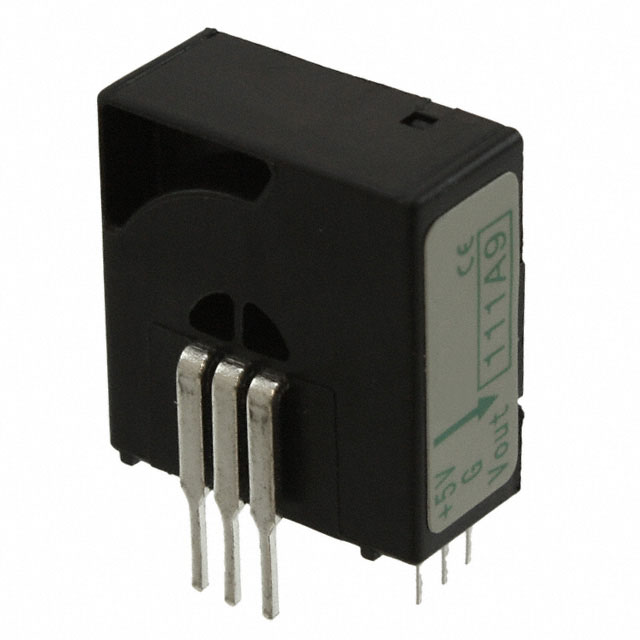

Tamura S22P015S05 is a 15A, bidirectional, single-channel Hall effect current sensor module. This closed-loop device accurately measures AC and DC currents from DC up to 100kHz with a ±0.2% linearity. It operates on a 5V supply with a maximum current draw of 12.5mA. The output signal is ratiometric voltage, and it features a fast 1µs response time. The through-hole mounting package is suitable for various industrial applications including power supplies, motor control, and renewable energy systems. The device operates within a temperature range of -10°C to 85°C.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 100kHz |
| Accuracy | - |
| Operating Temperature | -10°C ~ 85°C |
| Voltage - Supply | 5V |
| Response Time | 1µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.2% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 12.5mA |
| Current - Sensing | 15A |
| Supplier Device Package | - |
| Number of Channels | 1 |
