LA37S500S05KM
CURRENT SENSOR (500A; 5V) -40 10Manufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura LA37S500S05KM is an open-loop current sensor module designed for precise current measurement up to 500A. This single-channel device features a single pass-through design for easy integration into power systems. Operating with a supply voltage range of 4.5V to 5.5V and consuming a maximum of 23mA, it provides an analog voltage output with a sensitivity of 1.25mV/A. The LA37S500S05KM offers excellent accuracy of ±1.8% and linearity of ±0.5%, with a response time of 3.5µs and an operating frequency up to 100kHz. Its chassis mount configuration and operating temperature range of -40°C to 105°C make it suitable for demanding applications in industrial power supplies, electric vehicle charging, and renewable energy systems.
Additional Information
Series: LA37S S05KRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module, Single Pass Through |
| Polarization | - |
| Sensitivity | 1.25mV/A |
| Mounting Type | Chassis Mount |
| Output | Analog Voltage |
| Frequency | 100kHz |
| Accuracy | ±1.8% |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 3.5µs |
| Sensor Type | Open Loop |
| Linearity | ±0.5% |
| For Measuring | DC |
| Current - Supply (Max) | 23mA |
| Current - Sensing | 500A |
| Supplier Device Package | - |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy

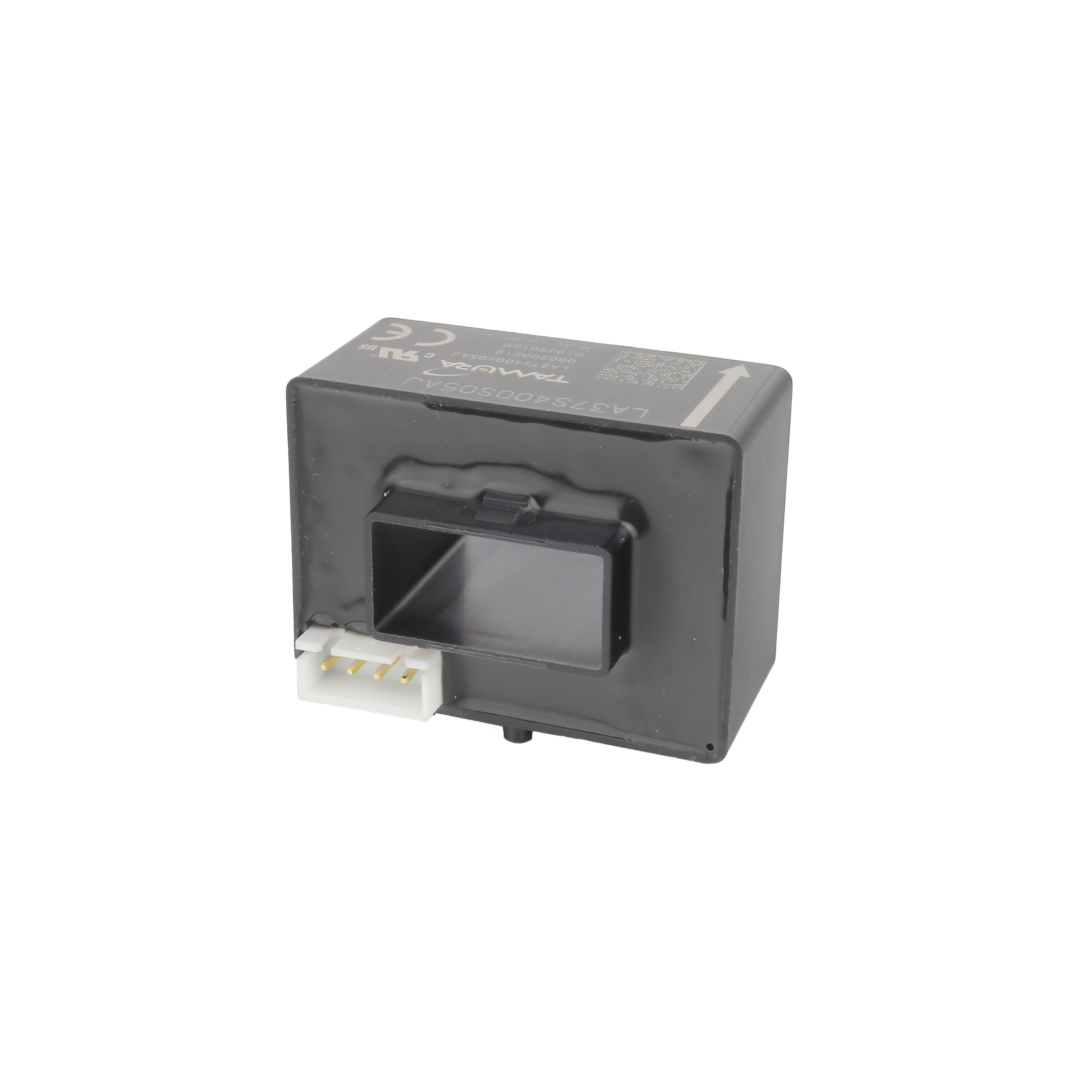

LA37S050S05KJ
CURRENT SENSOR (50A; 5V) -40 105

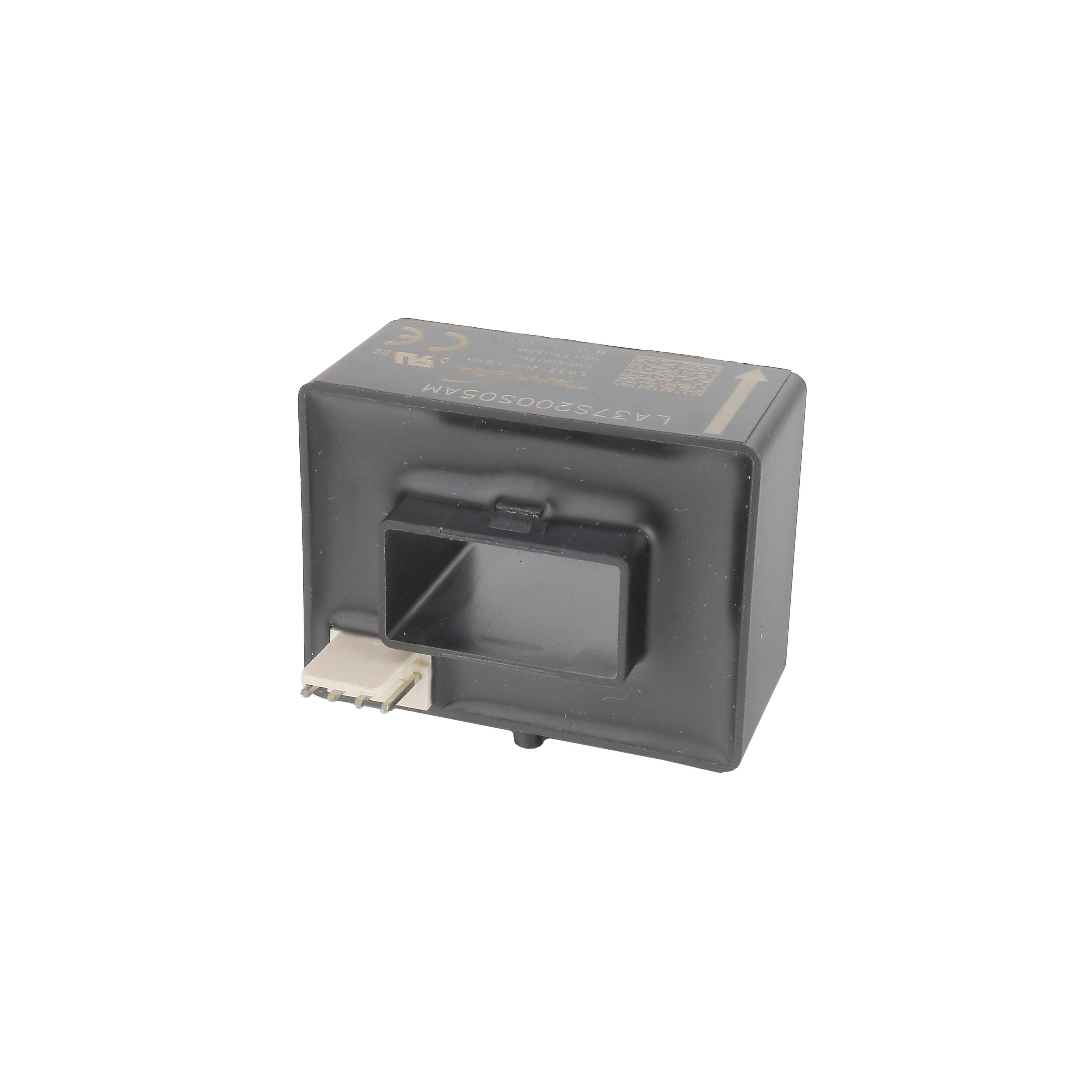

LA37S050S05KM
