Tamura LA02P Series Hall Effect Current Sensor, part number LA02P054S03, is an open-loop, bidirectional module designed for precise current measurement. This component offers a ±1% accuracy and ±1% linearity over a wide sensing current range of up to 54A, suitable for both AC and DC applications. Operating with a supply voltage between 2.97V and 3.63V, it features a low supply current of 10mA maximum. The sensor type is Hall Effect, providing a ratiometric voltage output with a sensitivity of 24.5mV/A. Its frequency response extends from DC up to 300kHz, and it boasts a fast 1µs response time. The LA02P054S03 is a single-channel device, packaged as a through-hole module, and operates across an industrial temperature range of -40°C to 100°C. This sensor is commonly utilized in power supply, industrial automation, and electric vehicle systems.
Additional Information
Series: LA02PRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | 24.5mV/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 300kHz |
| Accuracy | ±1% |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Supply | 2.97V ~ 3.63V |
| Response Time | 1µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 10mA |
| Current - Sensing | 54A |
| Supplier Device Package | - |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy
LA02P035S03
SENSOR
LA02P085S03
SENSOR

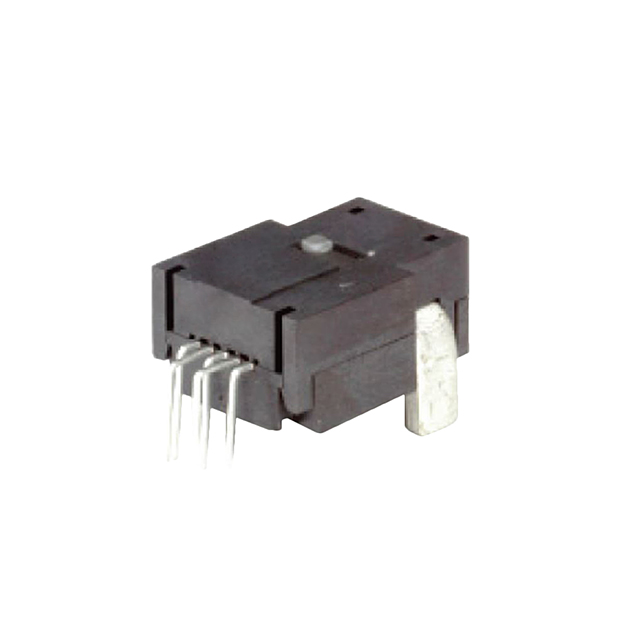

LA02P021S03
