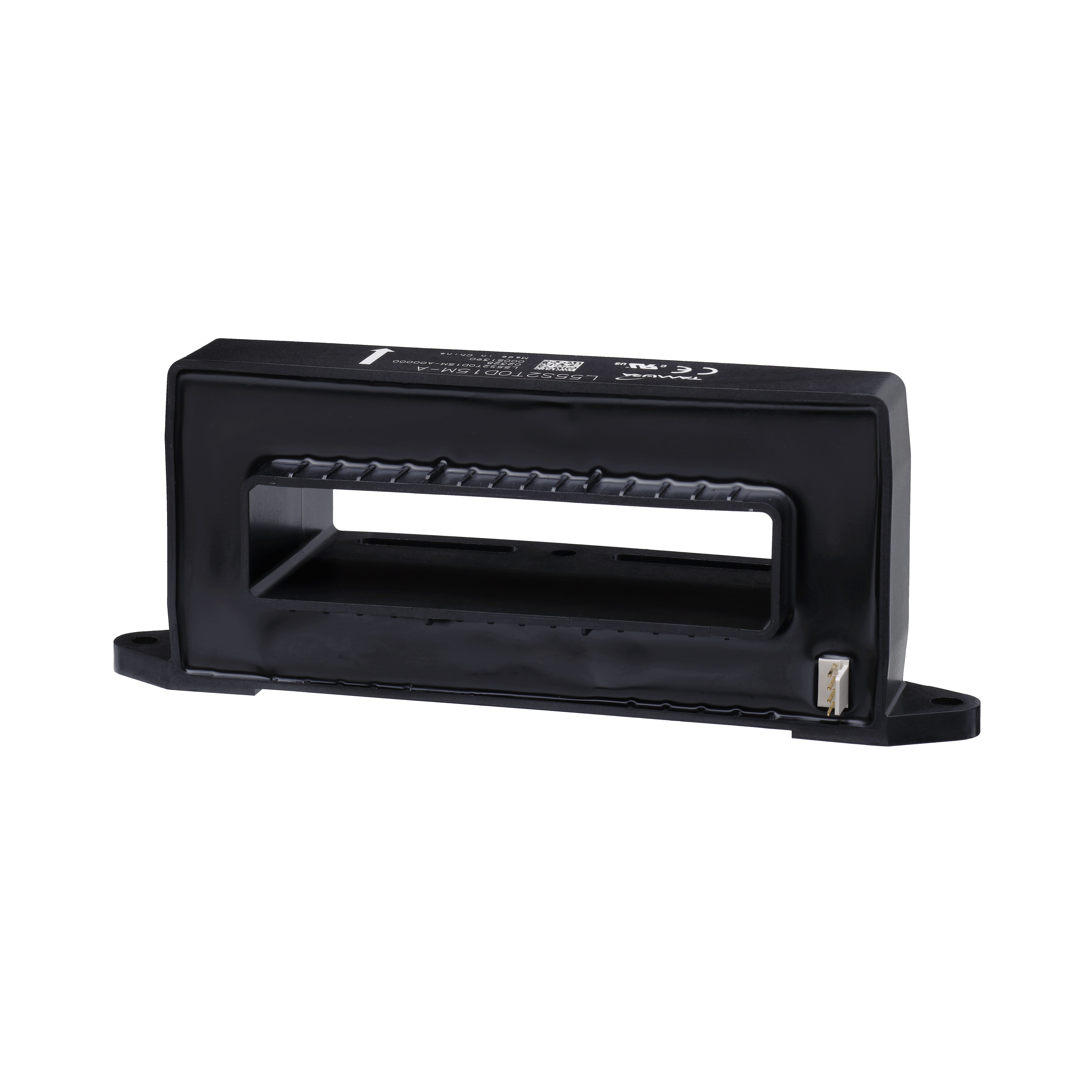

L55S2T0D15M
CURRENT SENSOR 2000A 18VManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura L55S D15 Series current sensor module, Part Number L55S2T0D15M. This open-loop, unidirectional sensor is designed for high-current DC measurements up to 2000A. Featuring a single-turn-through pass configuration, it offers a ±1% linearity and a response time of 5µs. The module operates with a ±12V supply voltage and consumes a maximum of 30mA. It is suitable for applications requiring precise current monitoring in industrial automation, power systems, and electric vehicle charging infrastructure. The operating temperature range is -40°C to 105°C, and it is chassis mounted.
Additional Information
Series: L55S D15RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module, Single Pass Through |
| Polarization | Unidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Voltage |
| Frequency | 25kHz |
| Accuracy | - |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | ±12V |
| Response Time | 5µs |
| Sensor Type | Open Loop |
| Linearity | ±1% |
| For Measuring | DC |
| Current - Supply (Max) | 30mA |
| Current - Sensing | 2000A |
| Supplier Device Package | - |
| Grade | - |
| Number of Channels | 1 |
| Qualification | - |
