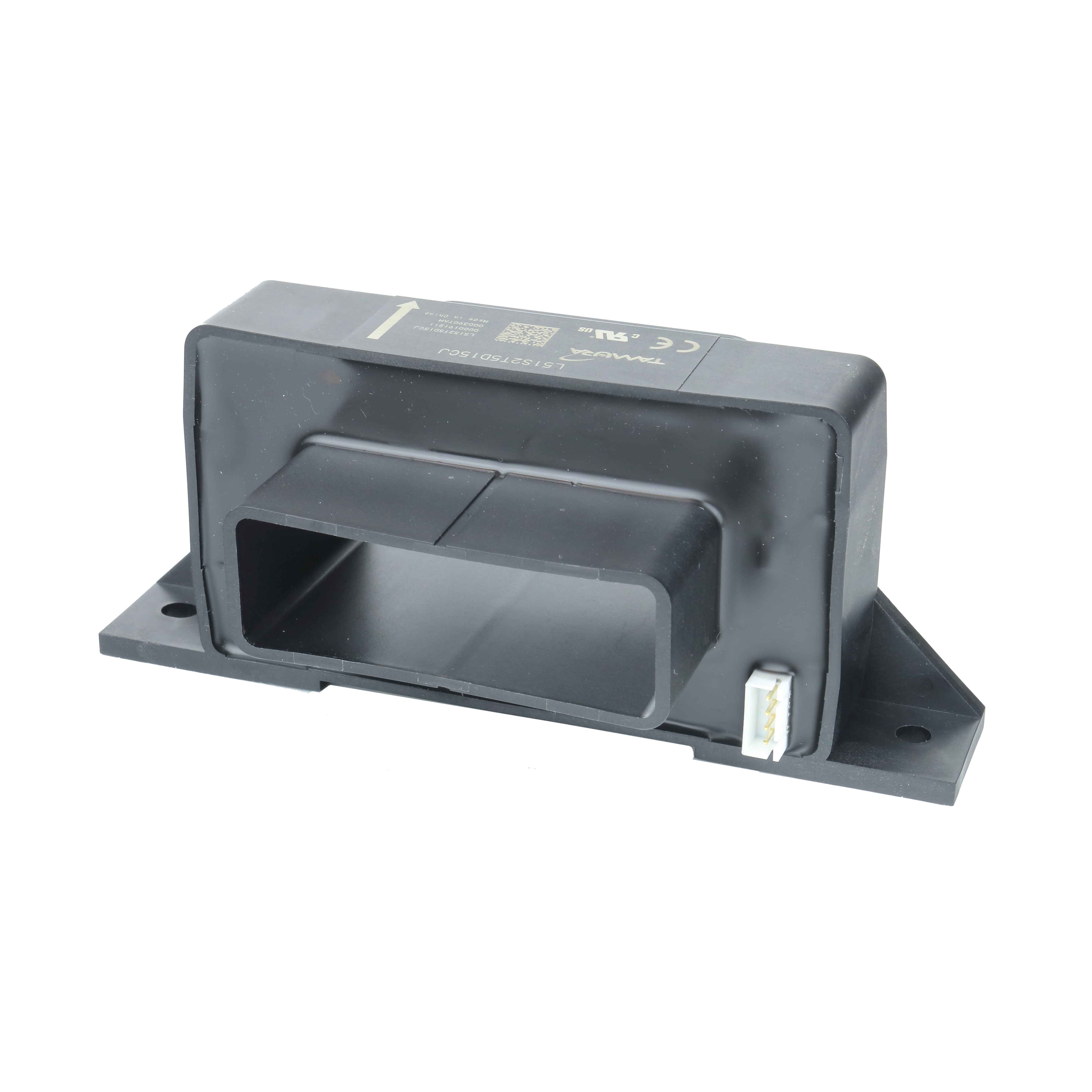

L51S1T0D15CJ
CURRENT SENSOR (1000A; 15V) -40Manufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura's L51S series L51S1T0D15CJ is an open-loop, bidirectional Hall effect current sensor module designed for robust current measurement up to 1000A. This single-pass-through module offers a broad supply voltage range of ±12V to ±18V, with a maximum supply current of 30mA. Featuring a wide frequency response from DC up to 25kHz, it is suitable for AC and DC current sensing applications. The L51S1T0D15CJ provides ratiometric voltage and current outputs, with a specified linearity of ±0.1% and a response time of 5µs, ensuring precise and rapid current detection. Its chassis mount configuration and operating temperature range of -40°C to 105°C make it well-suited for demanding industrial environments, including power systems, electric vehicles, and renewable energy applications.
Additional Information
Series: L51SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage and Current |
| Frequency | DC ~ 25kHz |
| Accuracy | - |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | ±12V ~ 18V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 30mA |
| Current - Sensing | 1000A |
| Supplier Device Package | - |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy

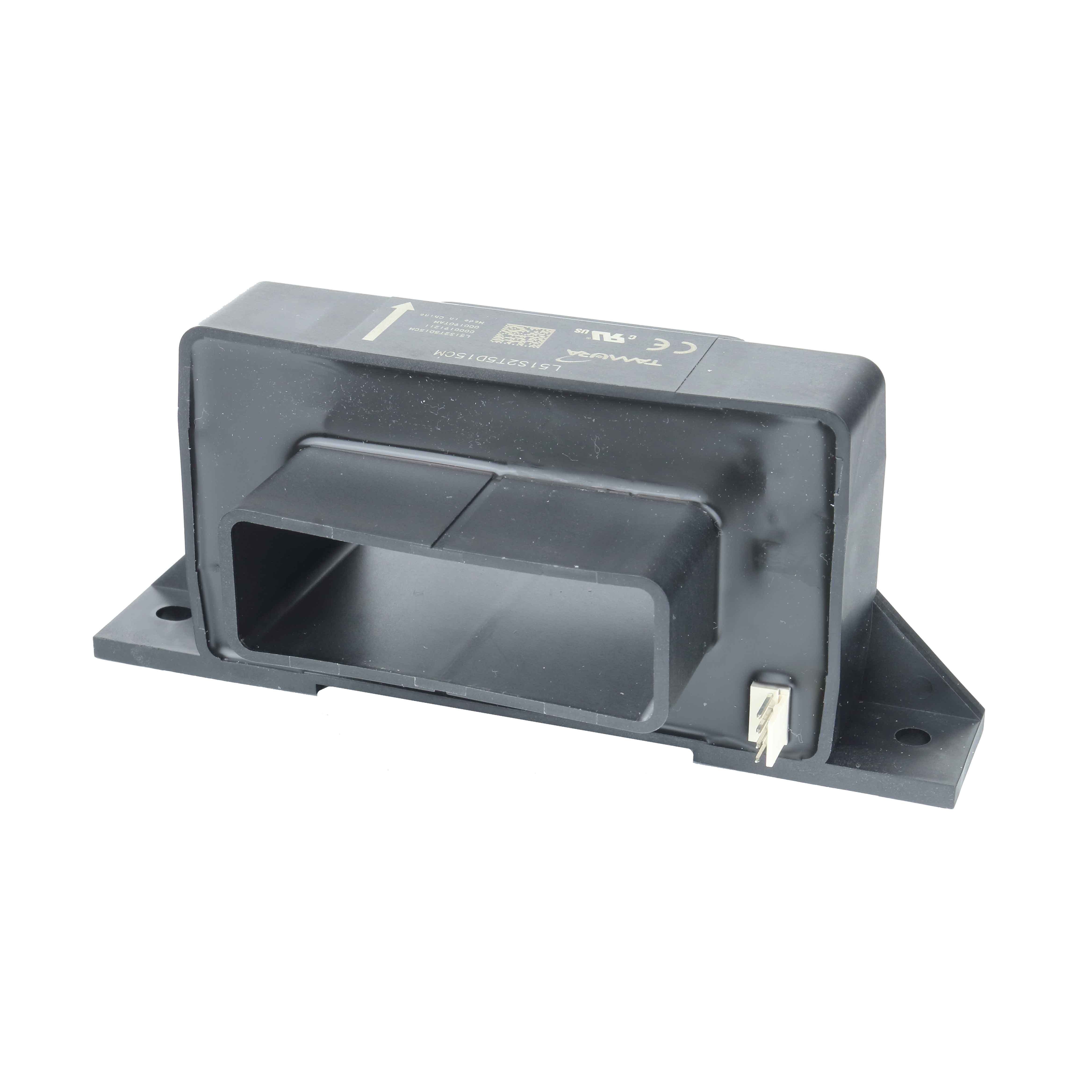

L51S1T0D15CM
CURRENT SENSOR (1000A; 15V) -40

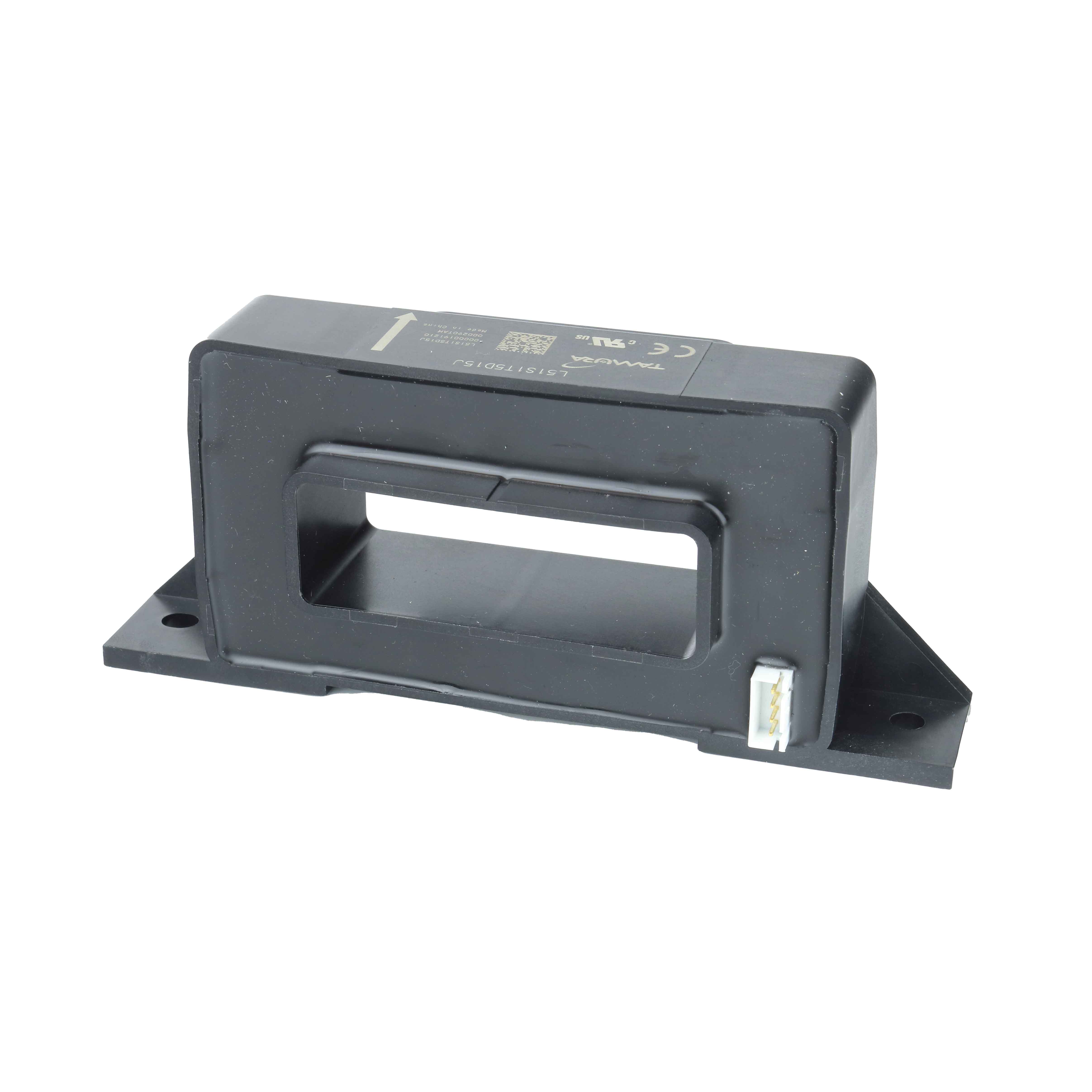

L51S1T0D15J
CURRENT SENSOR (1000A; 15V) -40

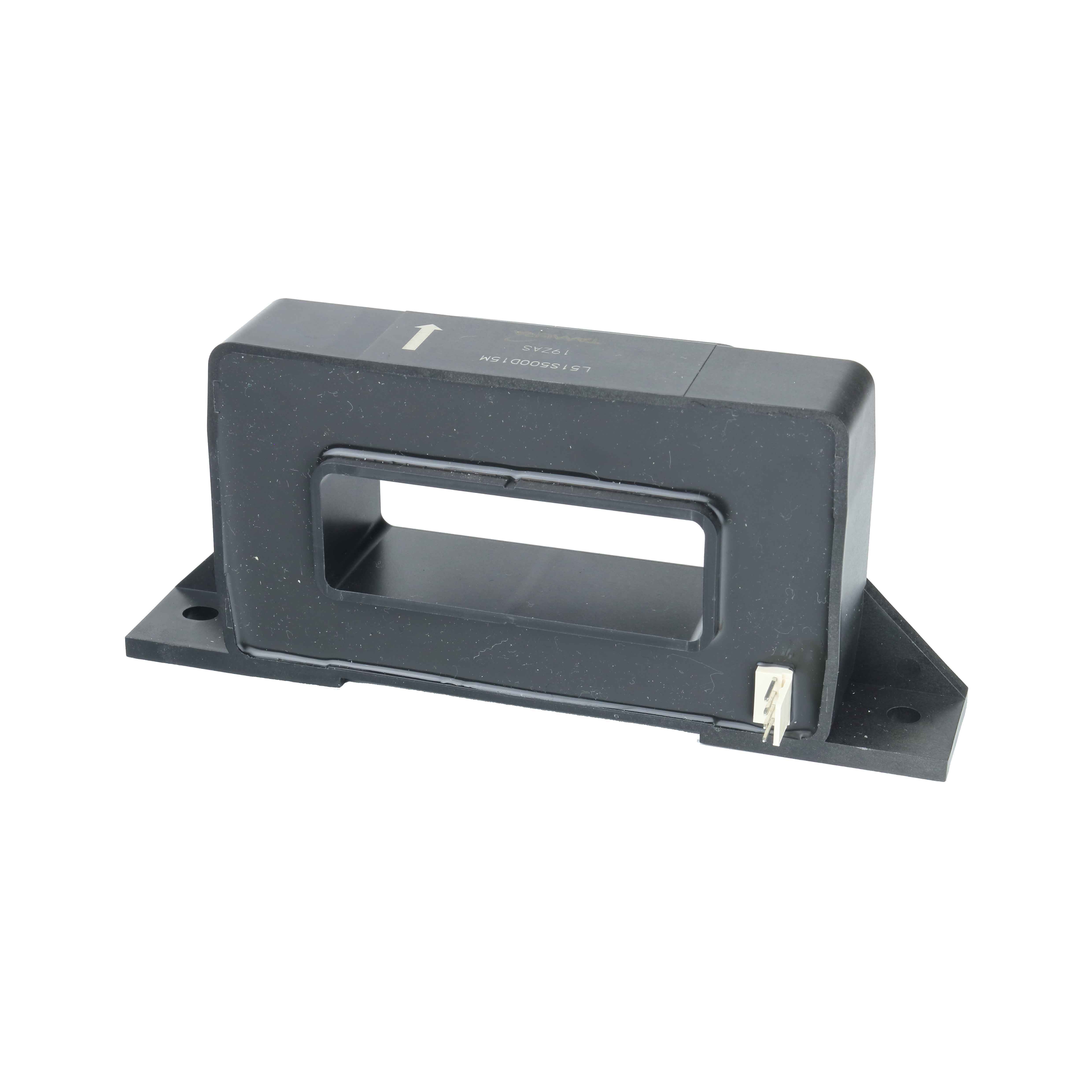

L51S1T0D15M
