L37S600D15J
CURRENT SENSOR (600A; 15V)Manufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura L37S600D15J is an open-loop, bidirectional Hall effect current sensor module designed for precise AC/DC current measurement up to 600A. This single-pass-through module offers a linearity of ±1% and a fast response time of 3µs, making it suitable for demanding applications. Featuring a ratiometric voltage output, it operates with a supply voltage range of ±12V to ±15V and consumes a maximum of 20mA. The L37S D15 series component is chassis mounted and operates reliably within an ambient temperature range of -40°C to 85°C. Industries utilizing this robust sensor include industrial automation, power conversion, and electric vehicle charging systems.
Additional Information
Series: L37S D15RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage |
| Frequency | - |
| Accuracy | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 3µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 20mA |
| Current - Sensing | 600A |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy

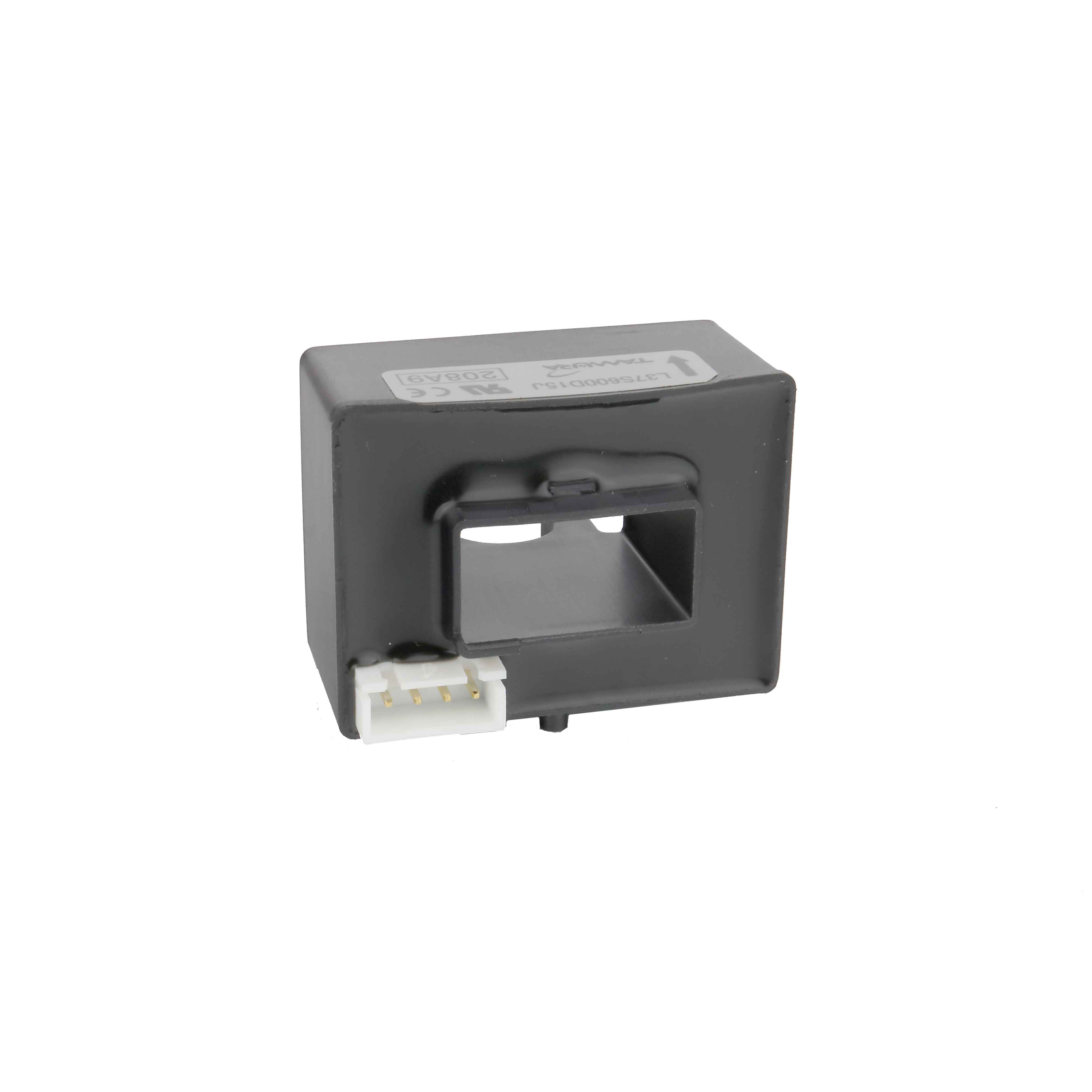

L37S050D15J
