L37S200S05J
CURRENT SENSOR (200A; +5V)Manufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura L37S200S05J is an open-loop, Hall-effect current sensor module designed for DC current measurement up to 200A. This bidirectional, single-pass-through unit operates with a supply voltage range of 4.75V to 5.25V, drawing a maximum of 20mA. It offers a ±1% linearity and a 5µs response time, with a frequency response from DC up to 50kHz. The output signal is ratiometric and voltage-based. Featuring a chassis mount design, the L37S200S05J is suitable for applications in industrial power systems, electric vehicle charging, and renewable energy infrastructure. The component is supplied in tray packaging.
Additional Information
Series: L37S S05RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 50kHz |
| Accuracy | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | DC |
| Current - Supply (Max) | 20mA |
| Current - Sensing | 200A |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy

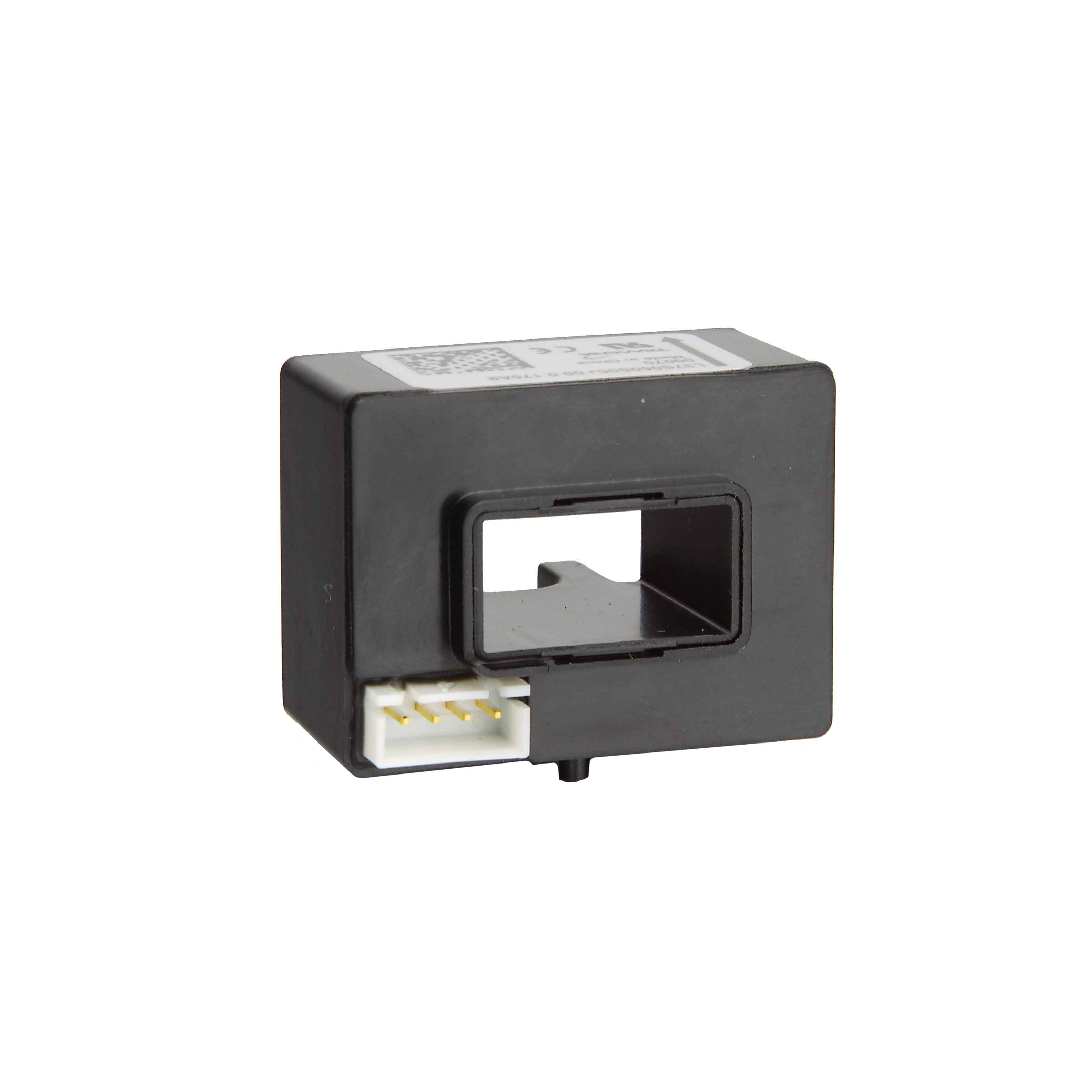

L37S050S05J
CURRENT SENSOR (50A; +5V)

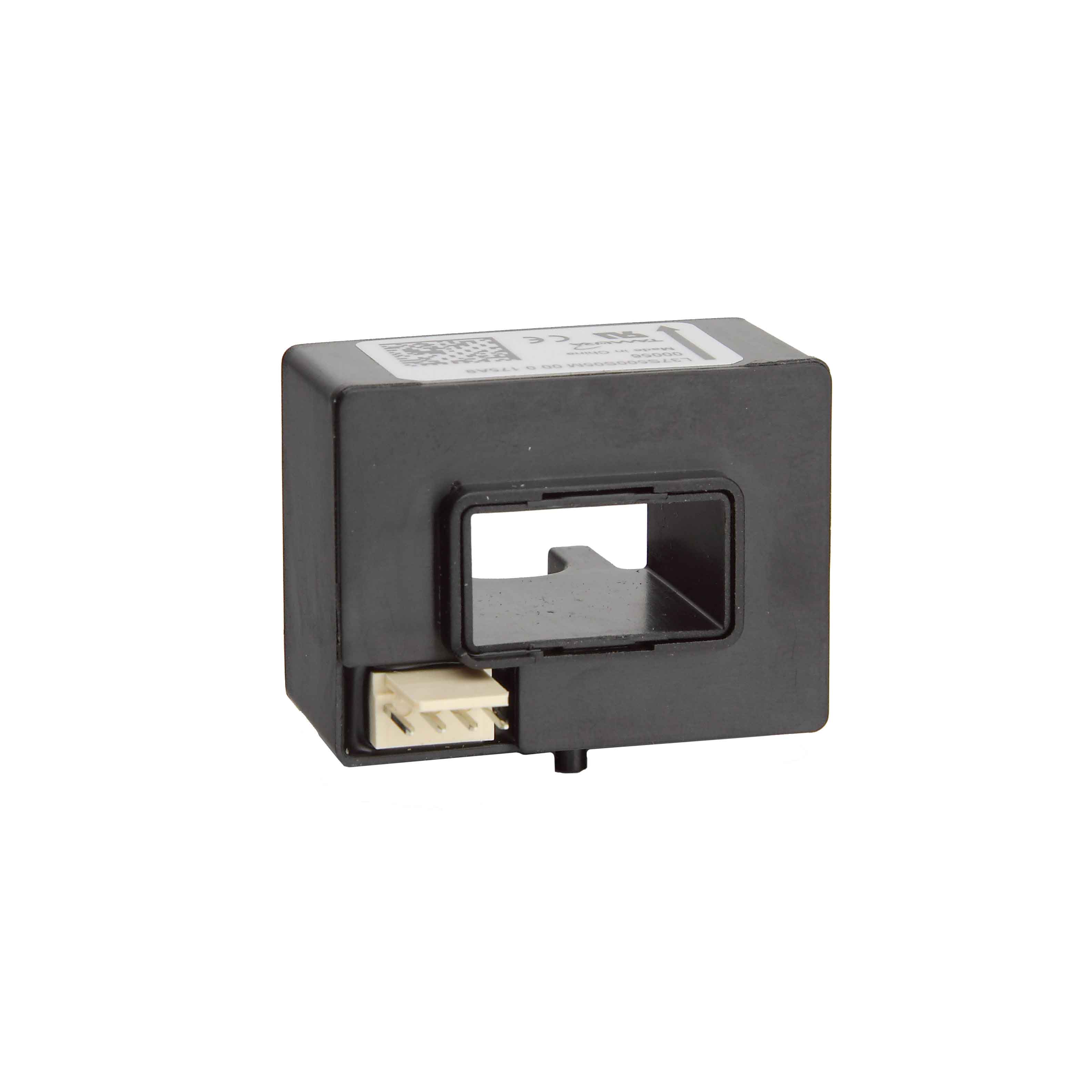

L37S050S05M
