L34S300D15T
CURRENT SENSOR (300A; 15V)Manufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More

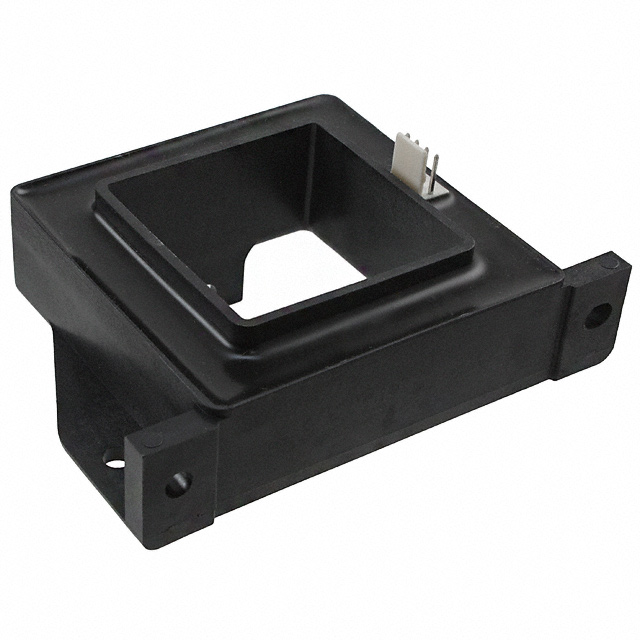

Tamura L34S D15T is an open-loop Hall Effect current sensor module designed for precise AC/DC current measurement up to 300A. This single-channel, bidirectional sensor features a single pass-through aperture for convenient integration into power systems. With a voltage supply range of ±12V to ±15V and a low supply current of 25mA (max), it is suitable for demanding applications. The L34S D15T offers a ratiometric voltage output with a linearity of ±0.5% and a fast response time of 5µs, operating across a frequency range from DC to 25kHz. Its chassis mount design and operating temperature range of -40°C to 105°C make it ideal for industrial automation, electric vehicle power management, and renewable energy systems.
Additional Information
Series: L34S D15TRoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 25kHz |
| Accuracy | - |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±0.5% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 25mA |
| Current - Sensing | 300A |
| Number of Channels | 1 |
