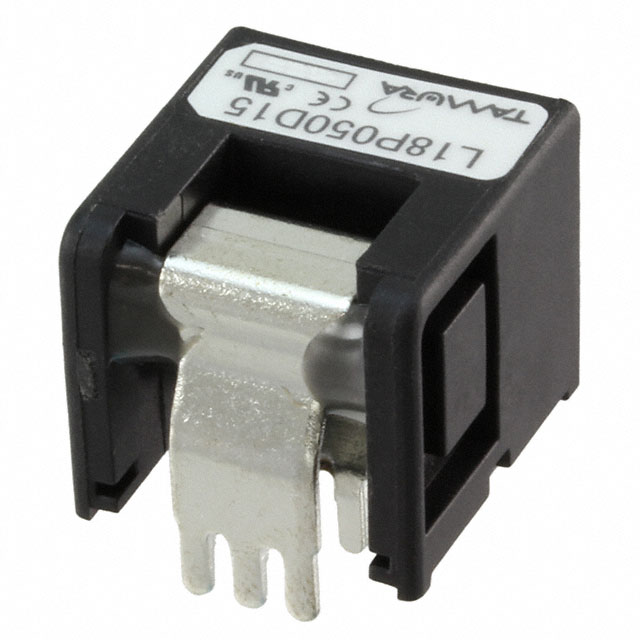

L18P050D15
SENSOR CURRENT HALL 50A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura L18P050D15, from the L18PXXXD15 series, is an open-loop Hall effect current sensor module designed for AC/DC current sensing up to 50A. This bidirectional sensor provides a ratiometric voltage output and offers ±1% linearity over its operating temperature range of -30°C to 80°C. With a response time of 5µs and a frequency response from DC up to 100kHz, it is suitable for applications requiring precise current monitoring. The module features a single channel and requires a supply voltage of ±15V, drawing a maximum of 15mA. Its through-hole mounting facilitates integration into various electronic systems. This component is widely utilized in industrial automation, power supplies, and electric vehicle charging systems.
Additional Information
Series: L18PXXXD15RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 100kHz |
| Accuracy | - |
| Operating Temperature | -30°C ~ 80°C |
| Voltage - Supply | ±15V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 15mA |
| Current - Sensing | 50A |
| Supplier Device Package | - |
| Number of Channels | 1 |
