L18P040S05
SENSOR CURRENT HALL 40A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More

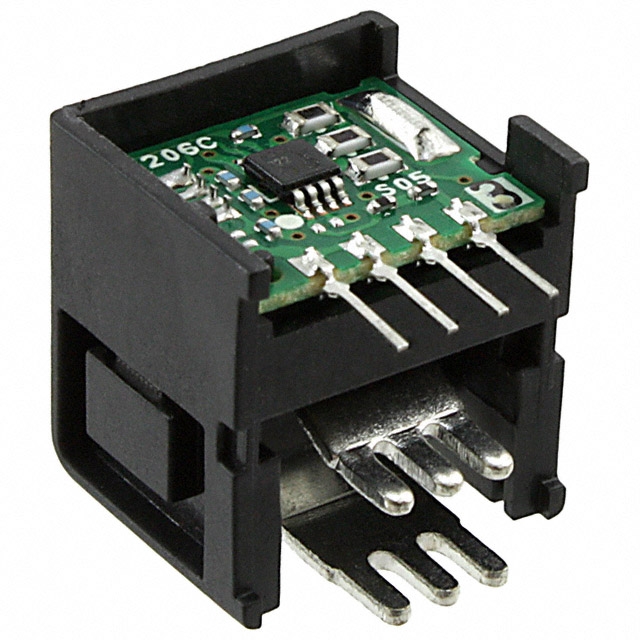

The Tamura L18P040S05 is an open-loop Hall effect current sensor module designed for bidirectional AC/DC current measurement up to 40A. This single-channel device operates with a 5V supply voltage, drawing a maximum of 15mA. It offers a ratiometric voltage output with a linearity of ±1% and a response time of 5µs, supporting frequencies from DC up to 100kHz. The module features through-hole mounting and is suitable for applications in industrial automation, power supplies, and electric vehicle systems. Its robust design and precise sensing capabilities make it a reliable choice for demanding applications requiring accurate current monitoring. The L18PXXXS05 series component is supplied in bulk packaging.
Additional Information
Series: L18PXXXS05RoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 100kHz |
| Accuracy | - |
| Operating Temperature | -30°C ~ 80°C |
| Voltage - Supply | 5V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 15mA |
| Current - Sensing | 40A |
| Supplier Device Package | - |
| Number of Channels | 1 |
