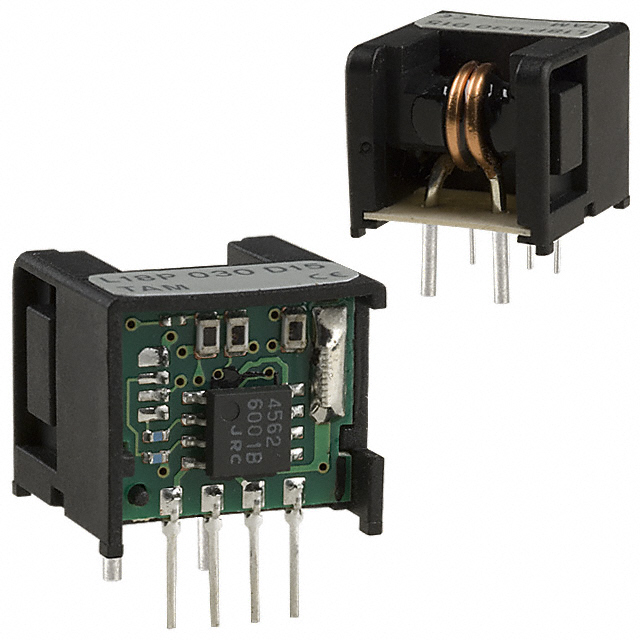

L18P030D15
SENSOR CURRENT HALL 30A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura L18P030D15 is a 30A, open-loop Hall effect current sensor module for bidirectional AC/DC current measurement. This single-channel device operates over a wide frequency range from DC to 100kHz, offering a linearity of ±1% and a typical response time of 5µs. The L18P030D15 features a ratiometric voltage output and requires a supply voltage of ±15V, with a maximum supply current draw of 15mA. Its through-hole mounting facilitates integration into various PCB designs. This component is commonly utilized in industrial automation, power supplies, motor control, and electric vehicle charging systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 100kHz |
| Accuracy | - |
| Operating Temperature | -30°C ~ 80°C |
| Voltage - Supply | ±15V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 15mA |
| Current - Sensing | 30A |
| Supplier Device Package | - |
| Number of Channels | 1 |
