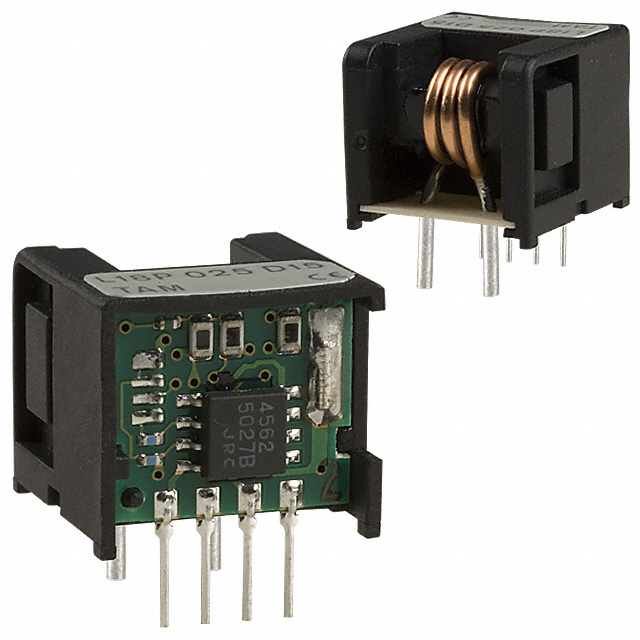

L18P025D15
SENSOR CURRENT HALL 25A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura L18P025D15 is an open-loop, Hall-effect current sensor module designed for AC/DC current measurement up to 25A. This bidirectional sensor provides a ratiometric voltage output, offering ±1% linearity and a response time of 5µs. Operating across a frequency range from DC to 100kHz, it is suitable for applications requiring precise current monitoring. The L18P025D15 features a single channel and requires a supply voltage of ±15V, with a maximum current consumption of 15mA. Its through-hole mounting allows for easy integration into various electronic designs. This component finds application in industrial automation, power supplies, and motor control systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 100kHz |
| Accuracy | - |
| Operating Temperature | -30°C ~ 80°C |
| Voltage - Supply | ±15V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 15mA |
| Current - Sensing | 25A |
| Supplier Device Package | - |
| Number of Channels | 1 |
