L18P015D15-OP
CURRENT SENSOR (15A; 15V)Manufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura L18P015D15-OP is an open-loop, bidirectional Hall Effect current sensor module designed for AC/DC current measurement up to 15A. This single-channel device operates with a supply voltage range of ±12V to ±15V and draws a maximum of 18mA. Featuring a ratiometric voltage output, it offers ±1% linearity and a response time of 5µs. The module is housed in a through-hole package, suitable for applications requiring robust mounting. This component finds utility in industrial automation, power supply monitoring, and electric vehicle systems.
Additional Information
Series: L18PXXXD15RoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | - |
| Accuracy | - |
| Operating Temperature | -30°C ~ 80°C |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 18mA |
| Current - Sensing | 15A |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy

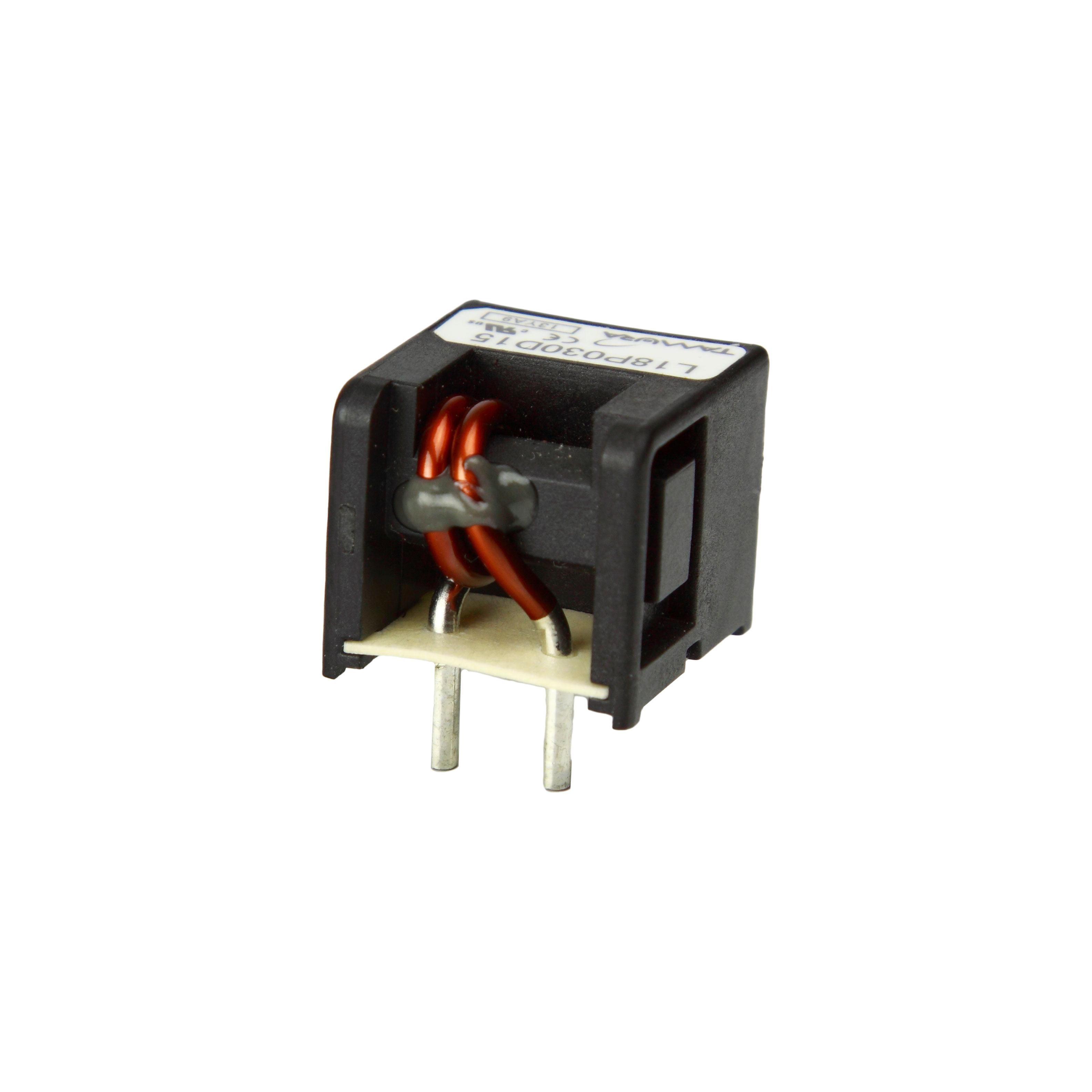

L18P003D15-OP
CURRENT SENSOR (3A; 15V)

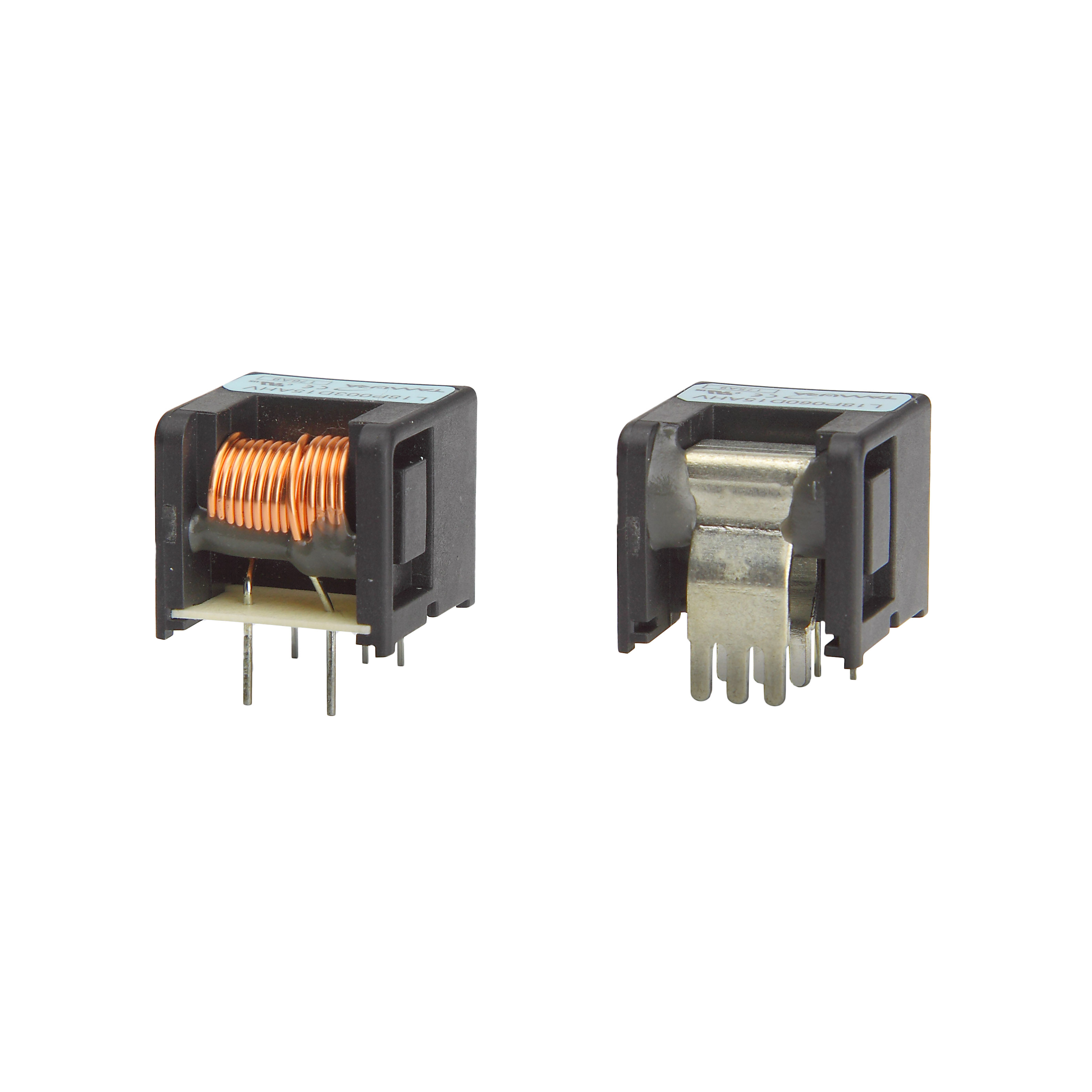

L18P003D15AHV
