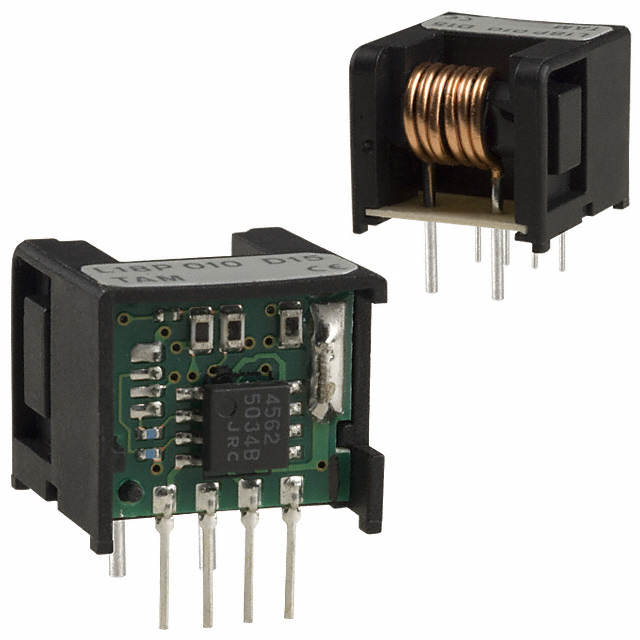

L18P010D15
SENSOR CURRENT HALL 10A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura L18P010D15 is a 10A bidirectional Hall Effect current sensor module. This open-loop sensor is designed for AC/DC current measurement with a frequency response from DC up to 100kHz. It offers a linearity of ±1% and a response time of 5µs, ensuring precise and rapid current detection. The L18P010D15 operates with a supply voltage range of ±15V, drawing a maximum of 15mA. Output is provided in a ratiometric voltage format. The through-hole mounting type facilitates integration into various electronic designs. This component is suitable for applications in industrial automation, power supply monitoring, and electric vehicle systems. The Tamura L18P010D15 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 100kHz |
| Accuracy | - |
| Operating Temperature | -30°C ~ 80°C |
| Voltage - Supply | ±15V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 15mA |
| Current - Sensing | 10A |
| Supplier Device Package | - |
| Number of Channels | 1 |
