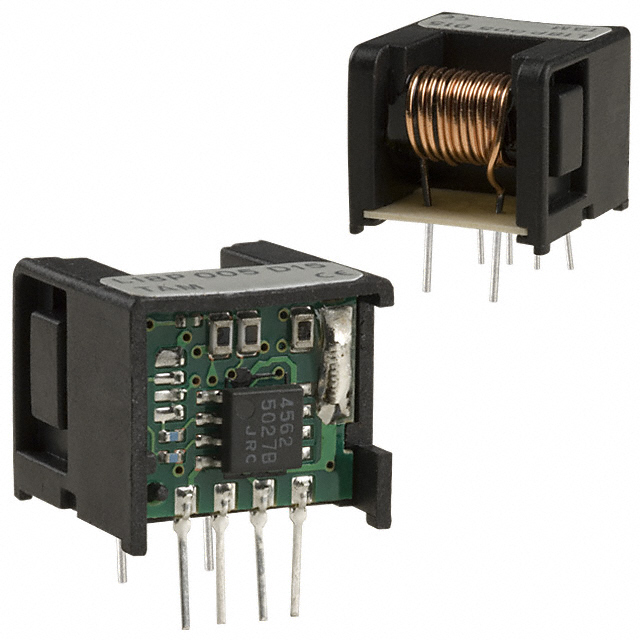

L18P005D15
SENSOR CURRENT HALL 5A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura L18P005D15 is a Hall Effect, open-loop current sensor module designed for bidirectional measurement of AC or DC currents up to 5A. This single-channel device offers a ratiometric voltage output with a linearity of ±1% and a response time of 5µs. Operating from ±15V supply rails with a maximum current draw of 15mA, the L18P005D15 functions across a wide frequency range from DC to 100kHz. Its through-hole mounting facilitates integration into various electronic systems. Typical applications include power supplies, motor control, and industrial automation where precise current monitoring is critical. The operating temperature range is -30°C to 80°C.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 100kHz |
| Accuracy | - |
| Operating Temperature | -30°C ~ 80°C |
| Voltage - Supply | ±15V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 15mA |
| Current - Sensing | 5A |
| Supplier Device Package | - |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy
F03P050S05
SENSOR CURRENT FLUX GATE 50A AC

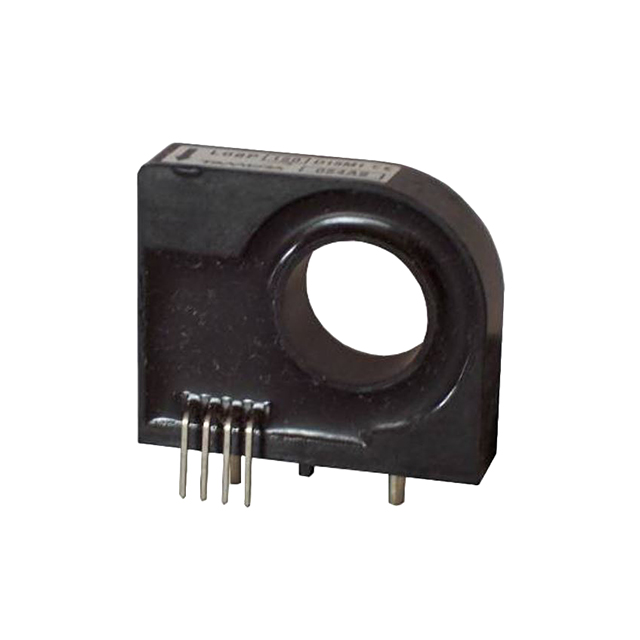

L08P050D15IPV
