L18P003D15
SENSOR CURRENT HALL 3A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More

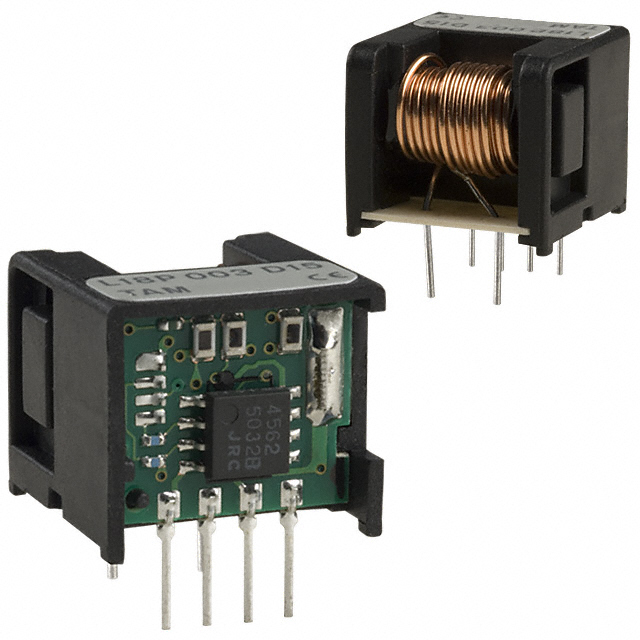

Tamura L18P003D15 is a single-channel, open-loop Hall effect current sensor module designed for bidirectional AC/DC current measurement up to 3A. This module offers a ratiometric voltage output with a linearity of ±1% and a response time of 5µs, operating across a frequency range from DC to 100kHz. It requires a supply voltage of ±15V and draws a maximum of 15mA. The L18P003D15 is suitable for through-hole mounting and operates within an ambient temperature range of -30°C to 80°C. This component is widely utilized in industrial automation, power supply control, and motor drive applications.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 100kHz |
| Accuracy | - |
| Operating Temperature | -30°C ~ 80°C |
| Voltage - Supply | ±15V |
| Response Time | 5µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 15mA |
| Current - Sensing | 3A |
| Supplier Device Package | - |
| Number of Channels | 1 |
