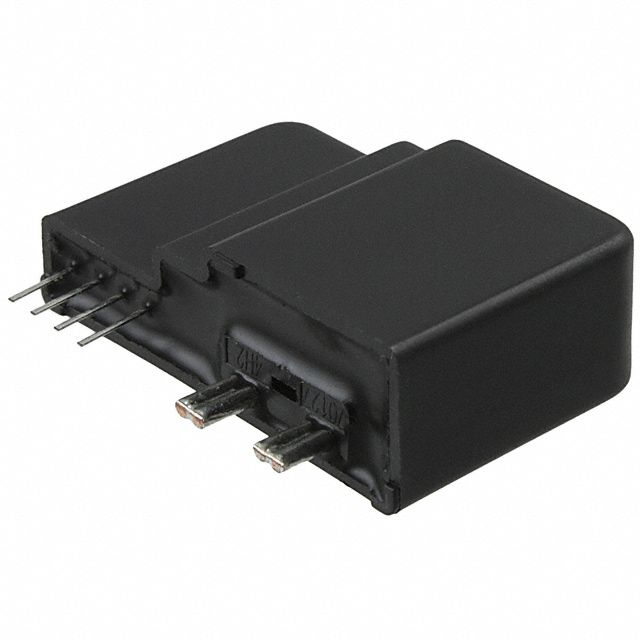

L12P025D15
SENSOR CURRENT HALL 25A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More
Tamura L12P025D15 is a 25A bidirectional Hall Effect current sensor module featuring open-loop operation. This component provides ratiometric voltage output with ±1% accuracy and ±1% linearity, facilitating precise AC/DC current measurement from DC up to 50kHz. Designed for through-hole mounting, the module operates with a supply voltage of ±15V and a maximum supply current of 15mA. Its rapid 3µs response time makes it suitable for applications requiring fast transient analysis. The L12P025D15 is commonly utilized in industrial automation, power supply monitoring, and electric vehicle systems where accurate current sensing is critical. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 50kHz |
| Accuracy | ±1% |
| Operating Temperature | -30°C ~ 80°C |
| Voltage - Supply | ±15V |
| Response Time | 3µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 15mA |
| Current - Sensing | 25A |
| Supplier Device Package | - |
| Number of Channels | 1 |
