L08P200D15
SENSOR CURRENT HALL 200A AC/DCManufacturer: Tamura
Categories: Current Sensors
Quality Control: Learn More

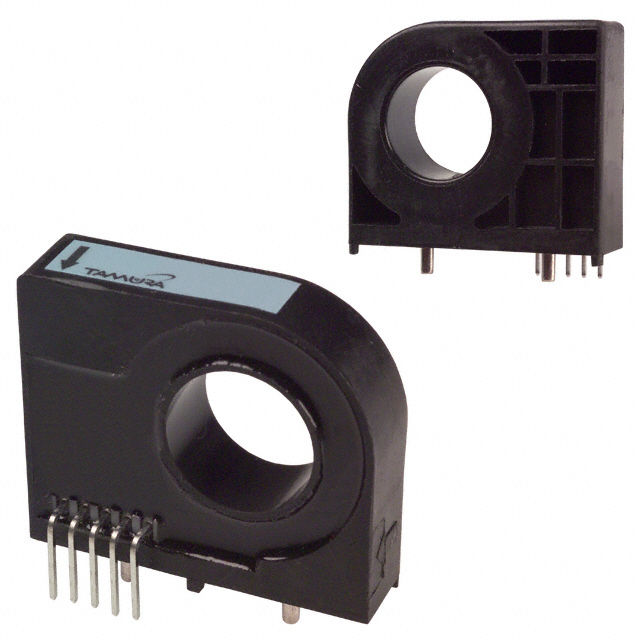

The Tamura L08P200D15 is a 1-channel, open-loop Hall Effect current sensor module designed for bidirectional AC/DC current sensing up to 200A. This component offers a ratiometric voltage output and operates with a supply voltage of 15V, drawing a maximum of 12mA. It features a linearity of ±1% and a response time of 10µs, with a frequency response from DC up to 100kHz. The L08P200D15 is suitable for through-hole mounting and is supplied in bulk packaging. It finds application in industrial automation, power control, and electric vehicle charging systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 100kHz |
| Accuracy | - |
| Operating Temperature | -20°C ~ 80°C |
| Voltage - Supply | 15V |
| Response Time | 10µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 12mA |
| Current - Sensing | 200A |
| Supplier Device Package | - |
| Number of Channels | 1 |
